Amplification generates modular diversity at an avirulence locus in the pathogen Phytophthora

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

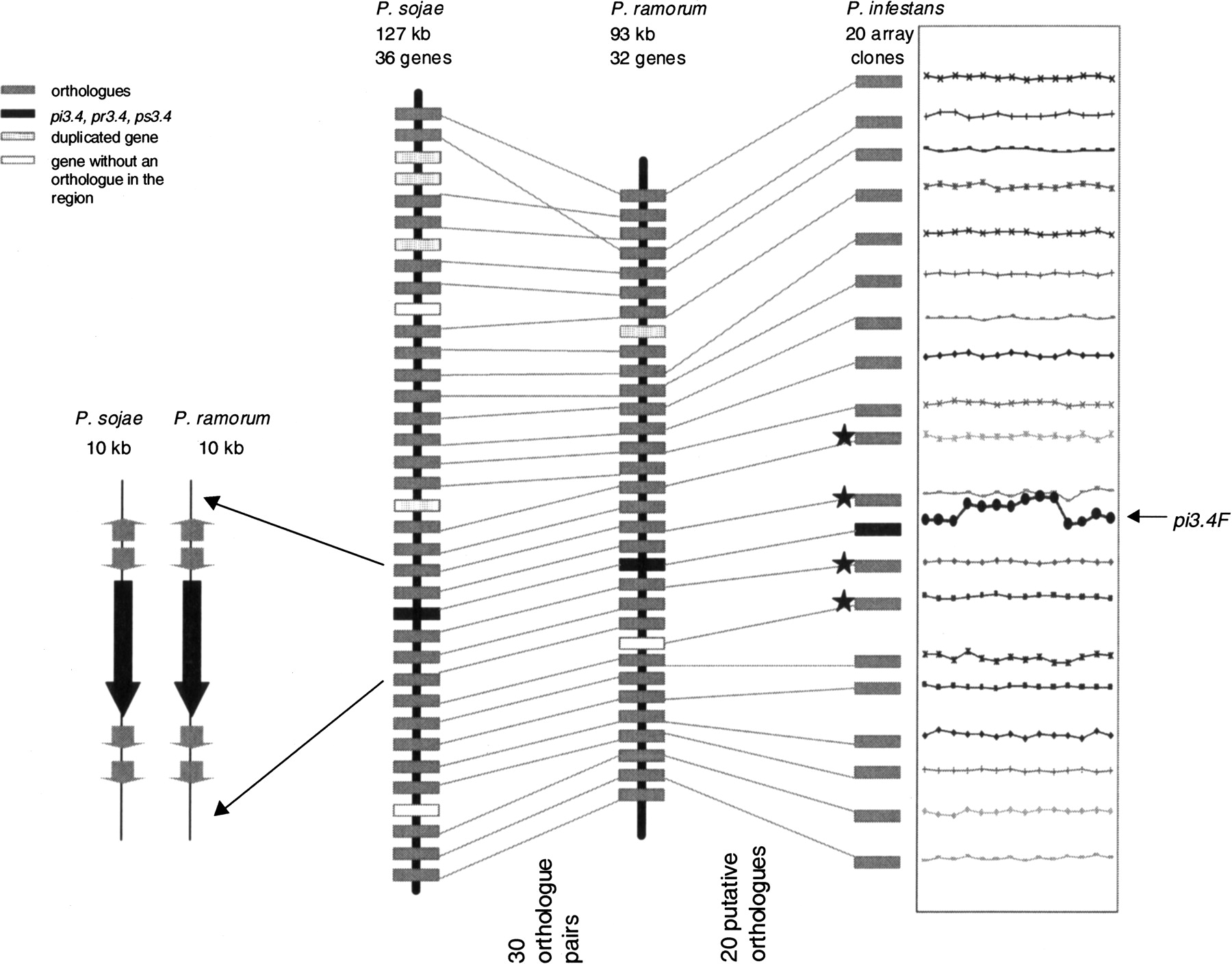

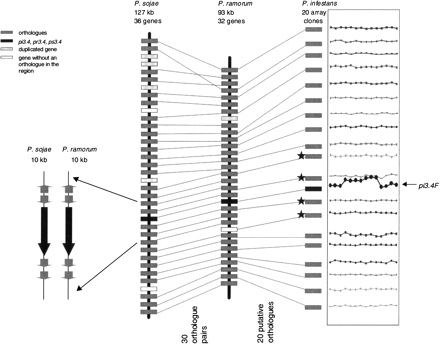

Figure 7.
Figure 7.

Synteny between P. sojae and P. ramorum in genomic regions containing the pi3.4F homolog. pr3.4 and ps3.4 are single-copy genes (indicated in black). Among 18,256 P. infestans array sequences, 20 homologs of the 30 ortholog pairs are found. Stars indicate the four ESTs used for screening the BAC contig. On the right, the log10 of the intensity of the array-CGH is plotted next to the homolog in P. infestans.
