Amplification generates modular diversity at an avirulence locus in the pathogen Phytophthora

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

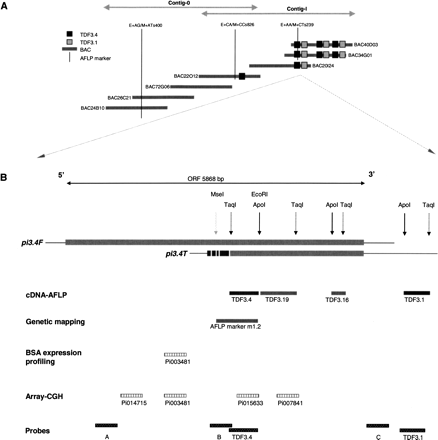

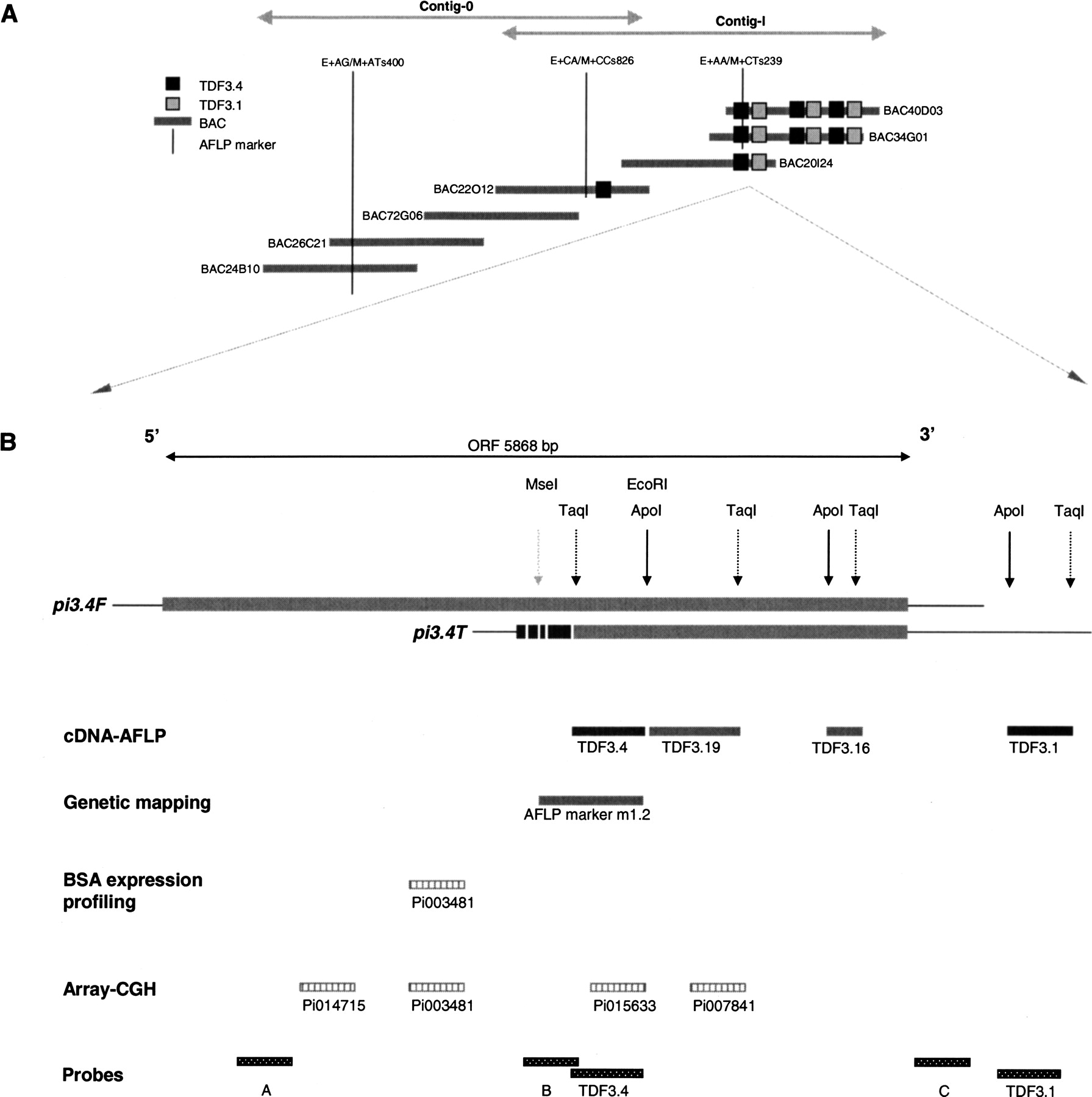

Figure 3.
Figure 3.

The Avr3b–Avr10–Avr11 locus on Linkage Group VIII. (A) BAC contigs across the Avr3b–Avr10–Avr11 locus. Contig-0 is the BAC contig previously identified by Whisson et al. (2001). (B) Multiple markers resulting from independent approaches (as listed on the left side) are derived from pi3.4. m1.2 is the cloned AFLP marker E+AA/M+CTs239. The sizes of BACs, genes, and markers are not drawn on scale.
