Genomic organization of the sex-determining and adjacent regions of the sex chromosomes of medaka

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 9.
Figure 9.

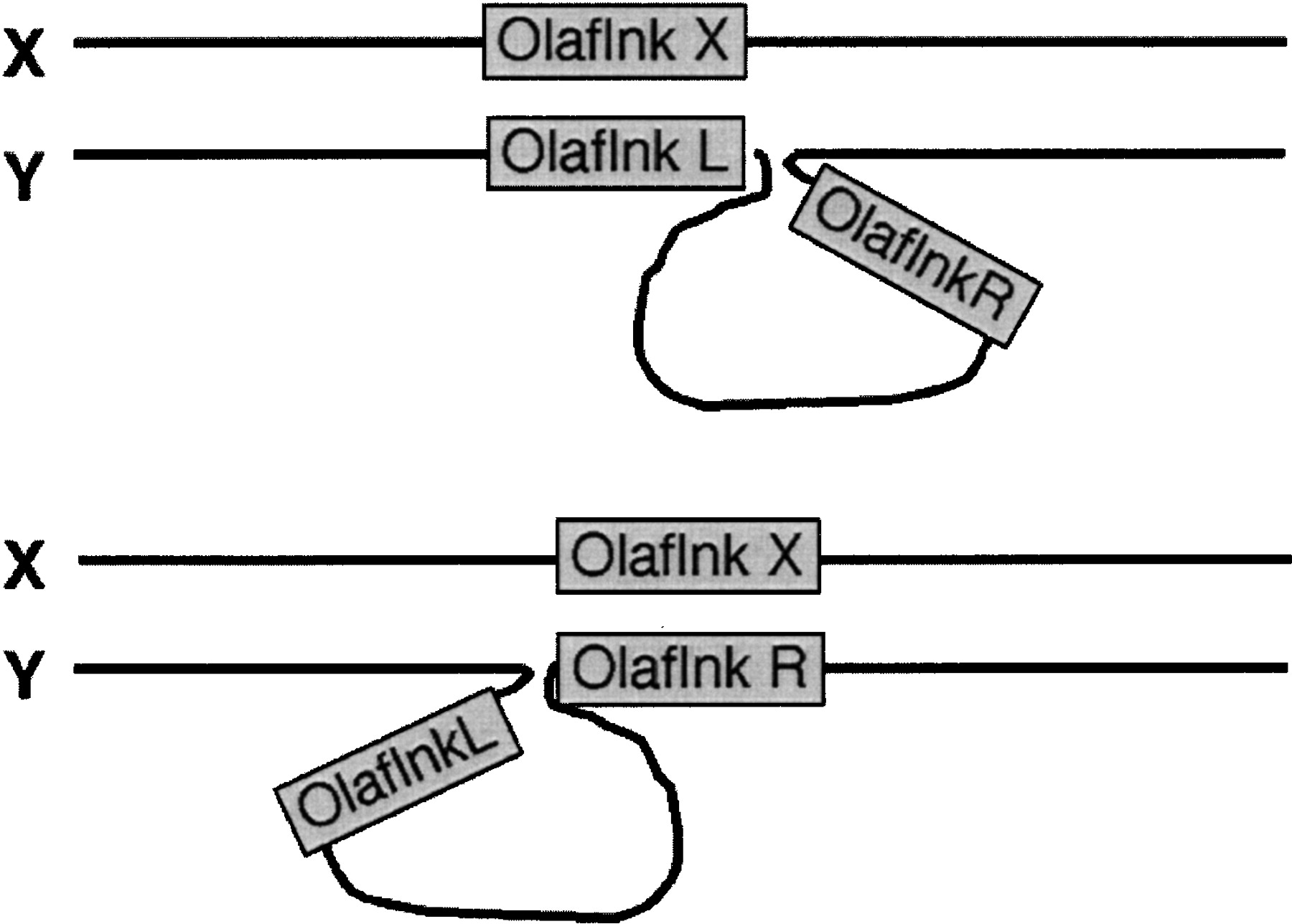

Hypothetical scheme of pairing of X and Y chromosomes during meiosis. Since the X and Y chromosomes are highly homologous, the left and right borders of the Y-specific region could pair, either by the X copy of Olaflnk pairing with the L copy and the Y-specific region, while the R copy and the Y-specific region are looping out, or by OlaflnkX pairing with OlaflnkR, and OlaflnkL and the Y-specific region looping out.

This Article

  1. Published in Advance June 2, 2006, doi: 10.1101/gr.5016106 Genome Res. 16: 815-826
