Functional genomics of membrane transporters in human populations

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

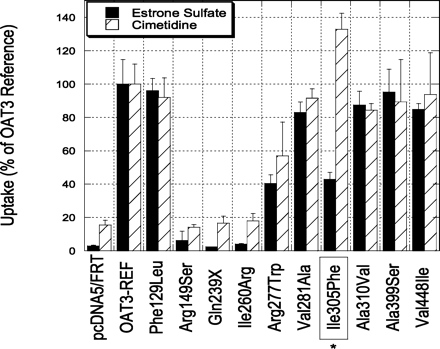

Figure 4.
Figure 4.

Functional characterization of protein-altering variants of OAT3 (SLC22A8). Uptake of estrone sulfate and cimetidine in HEK-293 cells expressing reference OAT3 and OAT3 protein-altering variants. Uptake values are expressed as a percentage of reference OAT3. Each value represents mean ± SD from triplicate wells in a representative experiment. (*) The selectivity variant Ile305Phe.
