Genome-wide detection of human copy number variations using high-density DNA oligonucleotide arrays

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

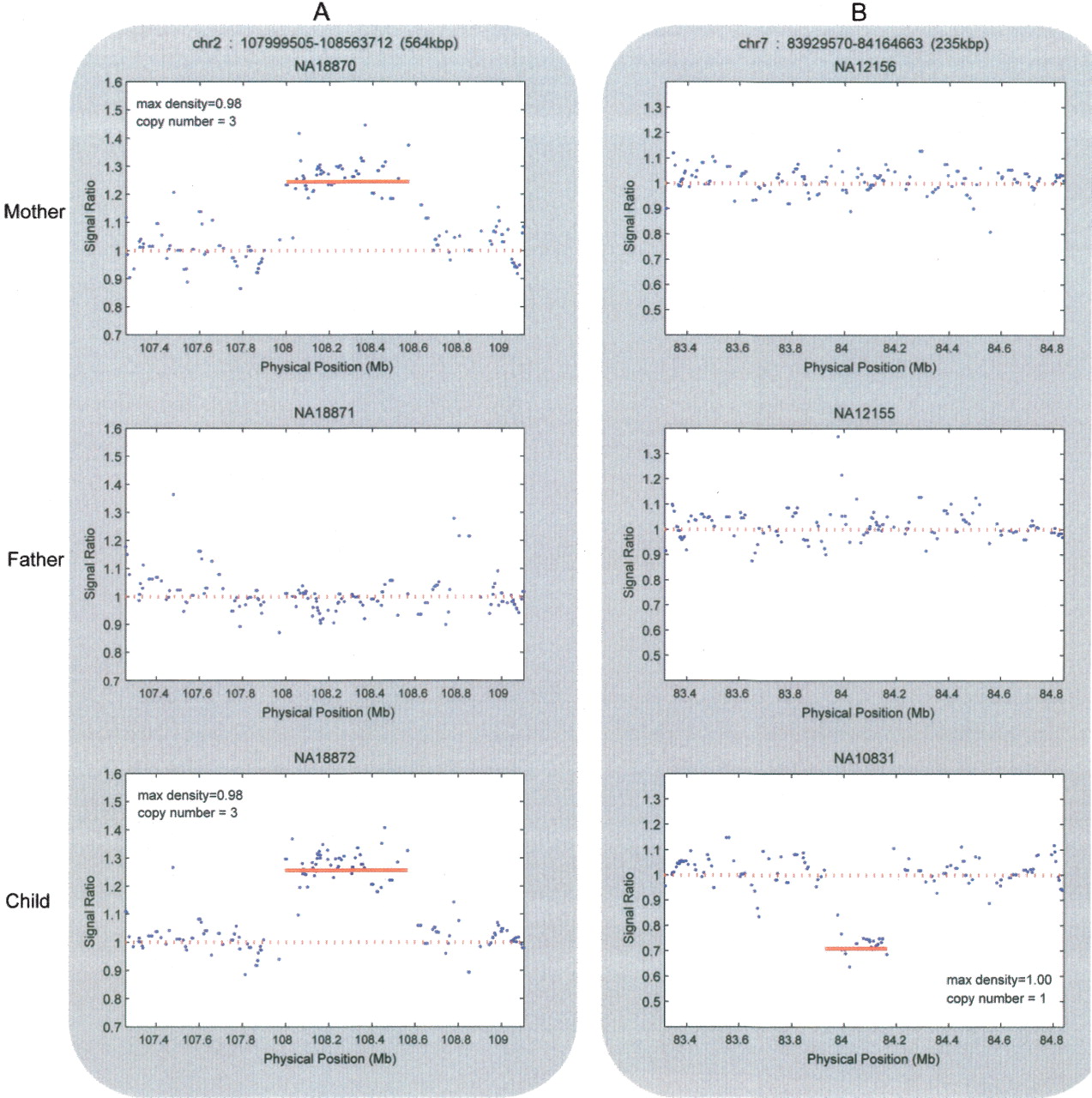

Figure 5.
Figure 5.

Mendelian and non-Mendelian CNV inheritance. (A) Transmission of a single copy gain transmitted from a YRI mother (NA18870), to the child (NA18872), and absent in the father (NA18871). These results were also confirmed by qPCR. (B) A single copy loss identified in a CEU child (NA10831) that is not present in either parent (NA12156 or NA12155). Each plot shows the smoothed (50-kb window) signal ratio intensity on the y-axis and the physical position of the probes on the x-axis.

This Article

  1. Published in Advance November 22, 2006, doi: 10.1101/gr.5629106 Genome Res. 16: 1575-1584
