Doubling genome size without polyploidization: Dynamics of retrotransposition-driven genomic expansions in Oryza australiensis, a wild relative of rice

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

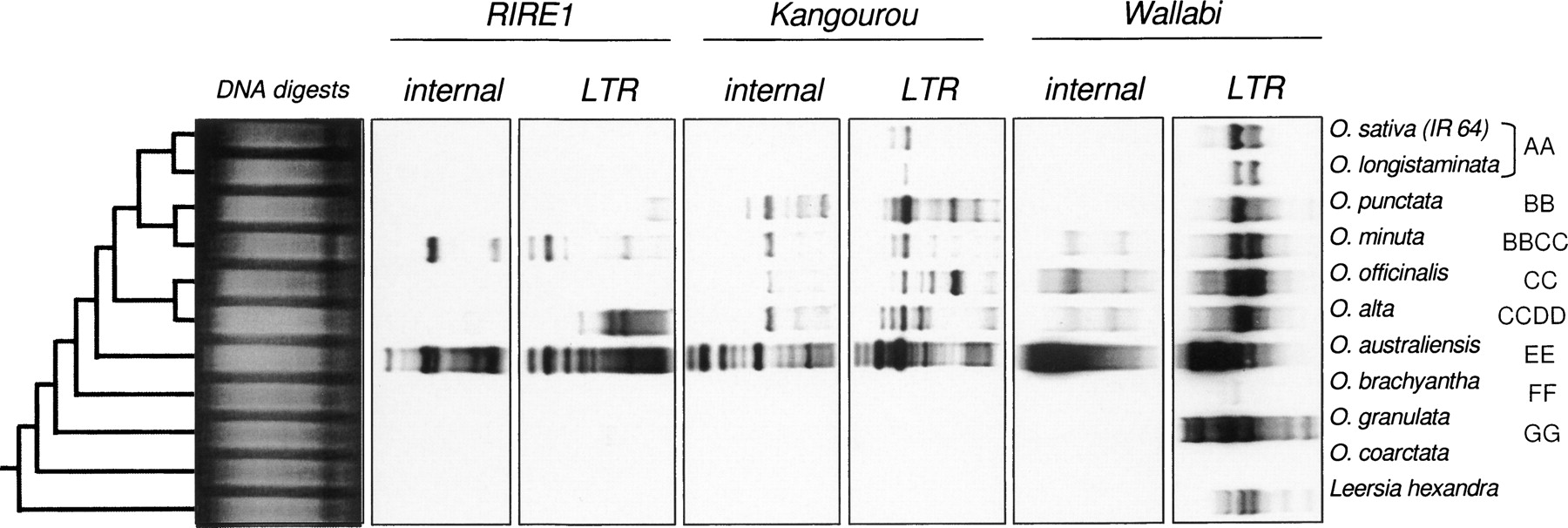

Figure 4.
Figure 4.

Southern hybridization of the three retrotransposons, RIRE1, Kangourou, and Wallabi on total genomic DNA of Oryza species digested with RsaI. The phylogenetic tree given on the figure is extrapolated from Ge et al. (1999). The direction of migration is from left to right.
