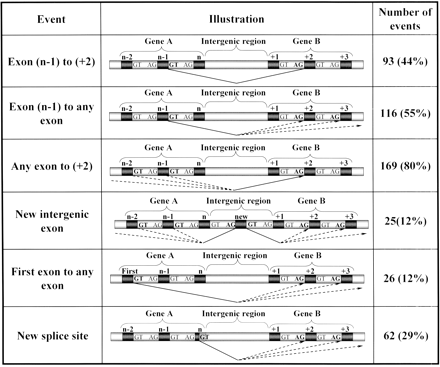

Figure 2.
Intergenic splicing patterns. Exons (dark boxes) are numbered from 1 to n. Percentage of events is calculated out of the 212 events detected in our computational search. Thin triangles mark the intergenic splicing pattern. “GT” and “AG” stand for the 5′ and 3′ splice sites, respectively. Splice sites used for the intergenic splicing are in bold. Patterns are not mutually exclusive, and hence, the percentages sum up to more than 100%.
