Variation in crossing-over rates across chromosome 4 of Arabidopsis thaliana reveals the presence of meiotic recombination “hot spots”

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 1.
Figure 1.

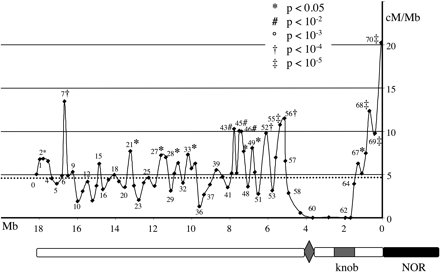

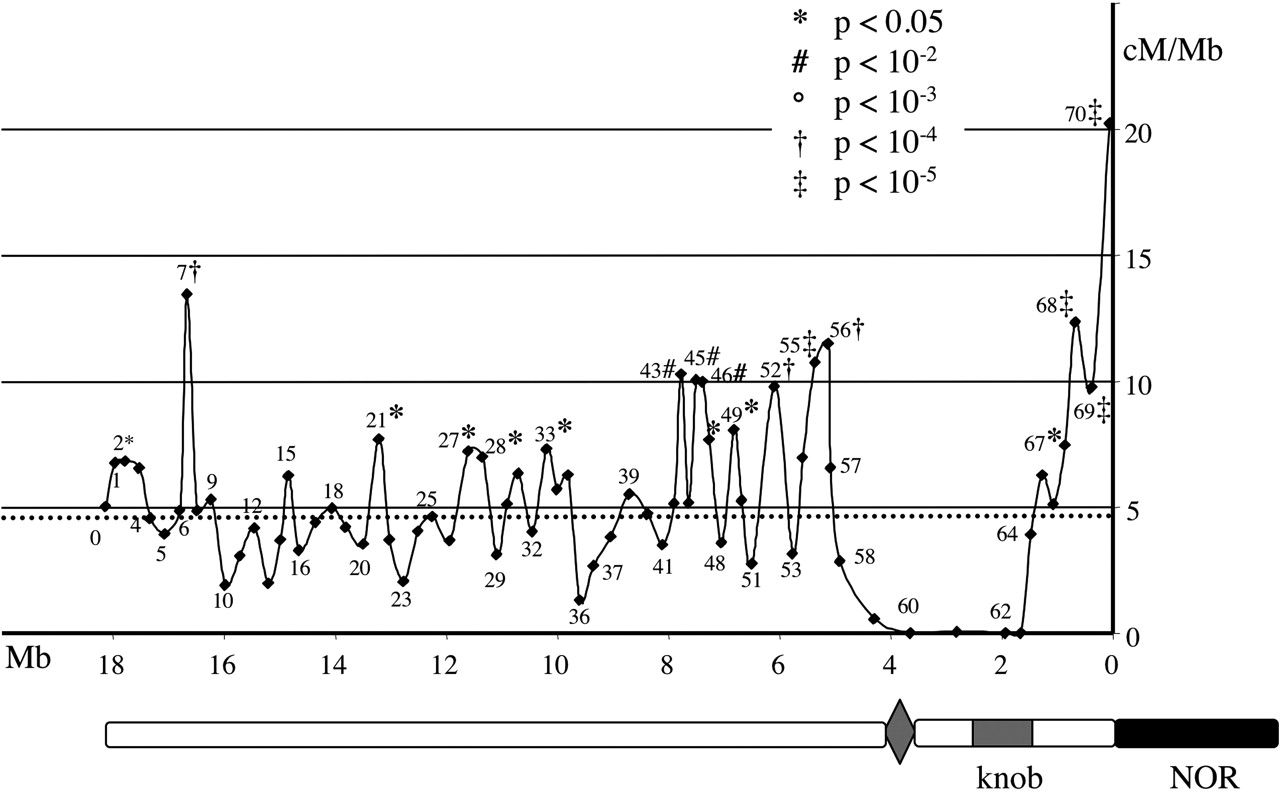

Variation of the CO rates on chromosome 4 of A. thaliana. The numbers refer to the intervals given in Supplemental Table 2. The dotted line represents the average CO rate on chromosome 4 (4.6 cM/Mb). A schematic representation of chromosome 4 of A. thaliana is aligned with the diagram. (Black box) NOR (nucleolar organizer region), (gray box) heterochromatic knob, (diamond-shaped box) centromere.

This Article

  1. Published in Advance December 12, 2005, doi: 10.1101/gr.4319006 Genome Res. 16: 106-114
