An extraordinary retrotransposon family encoding dual endonucleases

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

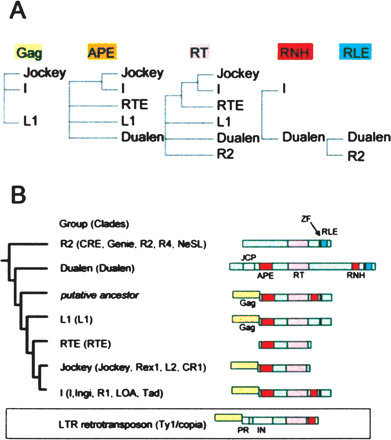

Figure 7.
Figure 7.

Summary of domain structure of non-LTR retrotransposons. (A) Reliable phylogeny of three conserved domains (APE, RT, and RNH) and the existence of two domains (Gag and RLE). (B) Evolution of domain structure of non-LTR retrotransposons. (PR) Protease; (IN) integrase.
