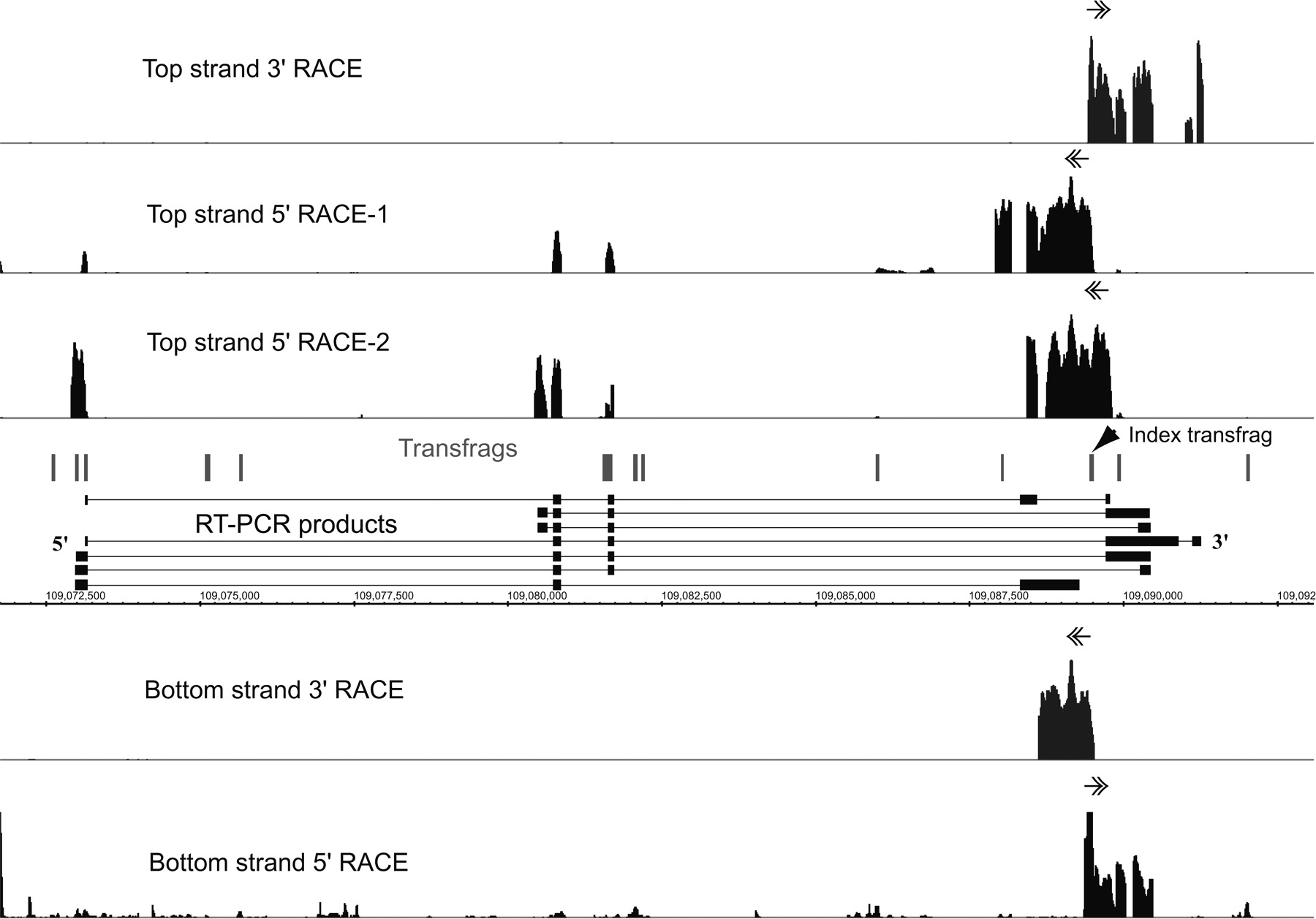

RACE/array transcript profiling in a novel locus on Chromosome 6, Chr6-74. The position of the index transfrag for RACE/array profiling is shown by an arrow on the track of the array-detected transfrags in this region. The presence of a transcript on either the top or bottom strand was interrogated using two 5′-RACE/array and two 3′-RACE/array assays with RACE primers designed to query for transcription on either strand. For the gene on the top strand, two 5′-RACE primers, separated by 428 bp, were used and are represented by 5′-RACE-1 and 5′-RACE-2 tracks. Transfrags not connected by RACE/array indicate the presence of additional transcripts in this locus.
