Mutation scanning by meltMADGE: Validations using BRCA1 and LDLR, and demonstration of the potential to identify severe, moderate, silent, rare, and paucimorphic mutations in the general population

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 2.
Figure 2.

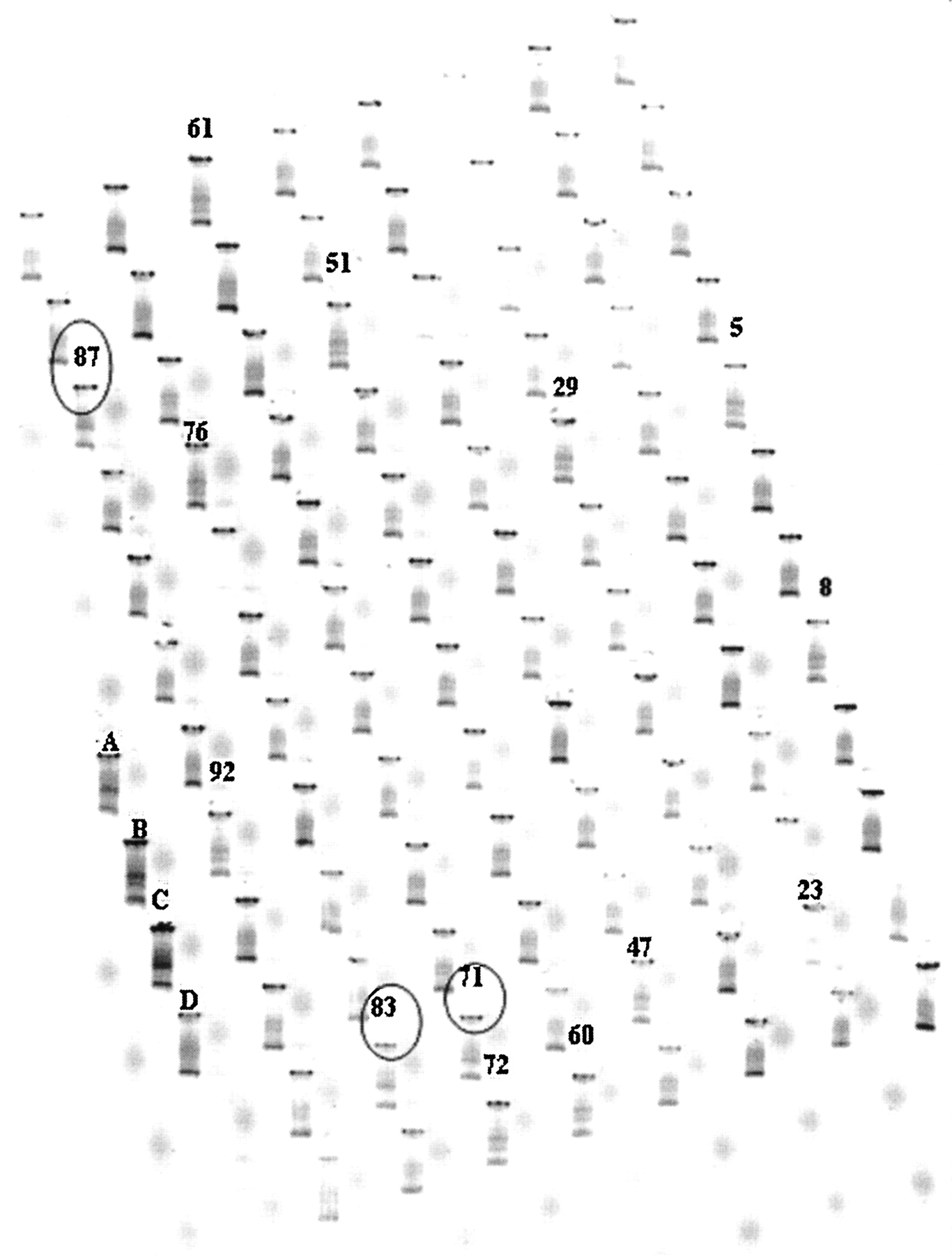

MeltMADGE analysis (undertaken blind to sample information) of amplicon 11B in a panel of 94 cases. Three different mutations, circled numbers 71, 83, and 87 (1138delG, 1218insA, 1131A→T, respectively), and one polymorphism (1187A→G), samples 5, 8, 23, 29, 47, 51, 60, 61, 72, 76, and 92, were identified. Adjacent tracks outside the 8 × 12 96-well array were loaded with known mutation amplicons (tracks A, B, and C) and wild-type amplicon (D).
