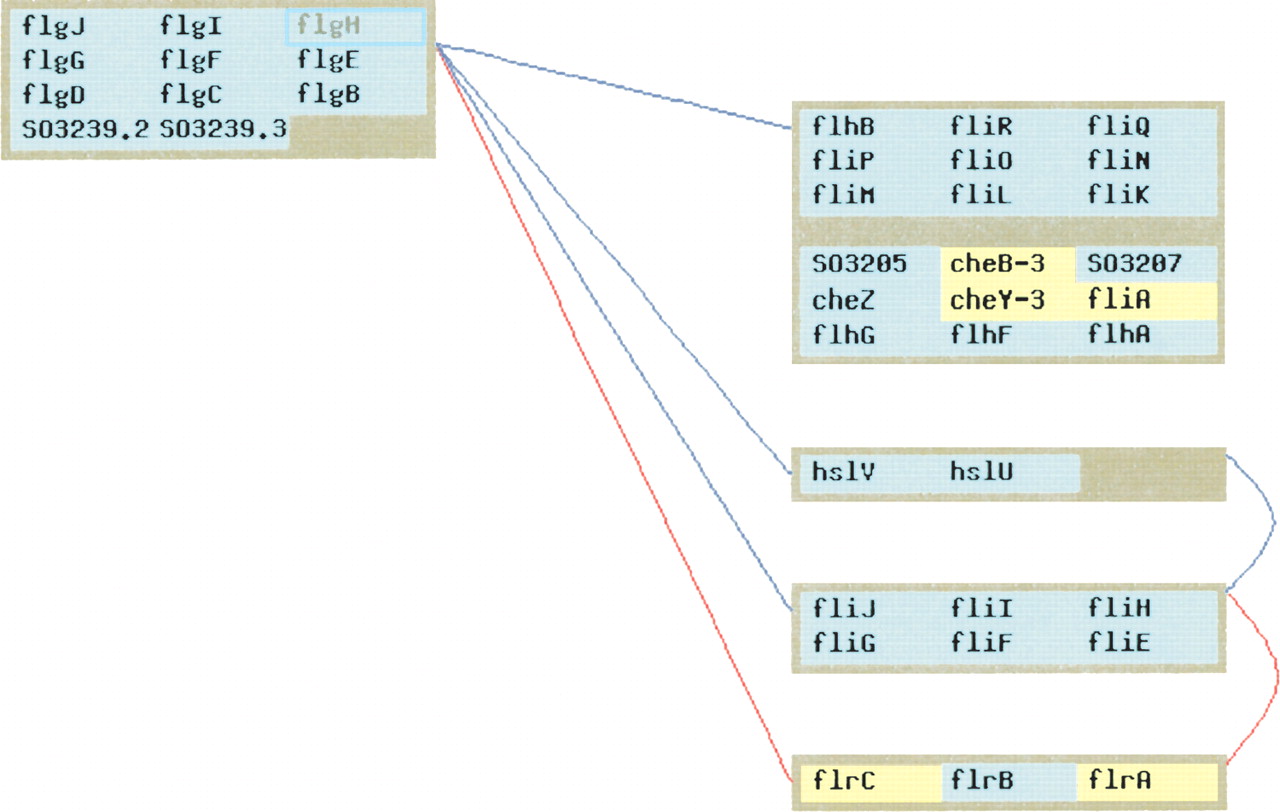

Regulon Browser. The Regulon Browser page for flgH of Shewanella oneidensis MR-1 is shown. Genes predicted to be possible transcriptional regulators are highlighted with yellow boxes; other genes are blue. Genes in the same predicted operon are connected, and operons in the same predicted regulon appear inside the same gray box (e.g., the two operons in the top right regulon). Red lines connecting regulons indicate strong similarity in expression patterns, while blue lines indicate chromosomal proximity of the orthologs, one or more component genes from each regulon in several distantly related species. Most of the genes highlighted in this view are flagellar-related, and the fliA gene highlighted in yellow is the alternative σ factor responsible for expression of flagellar genes.
