Whole genome shotgun sequencing of Brassica oleracea and its application to gene discovery and annotation in Arabidopsis

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 4.
Figure 4.

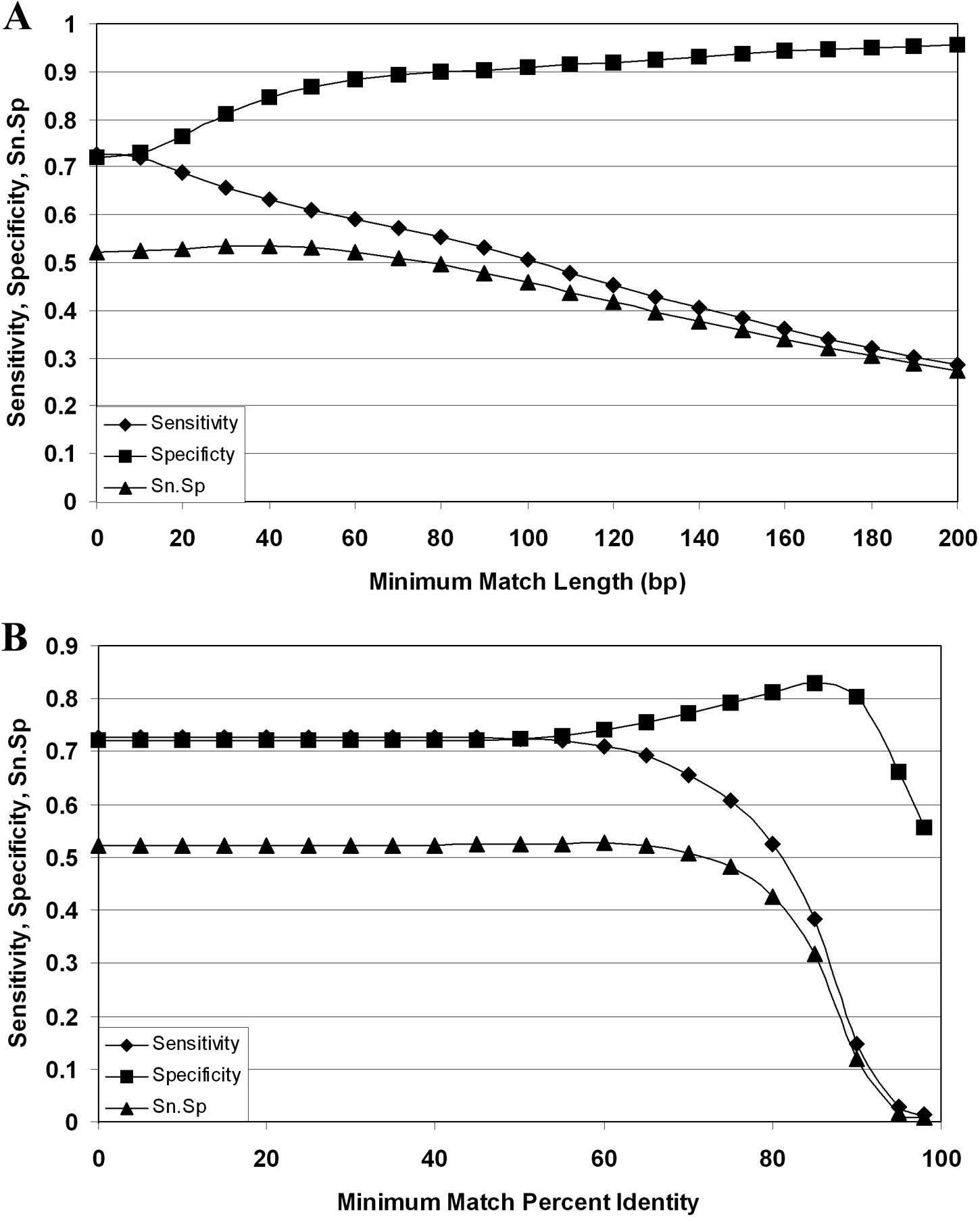

Sensitivity and specificity for exon detection by BLASTZ alignments: (A) as a function of match length, with minimum percentage identity set to zero; and (B) as a function of percentage identity with minimum match length set to zero. All BLASTZ alignments were filtered at different levels of match length and percentage identity, and specificity and sensitivity for identification of bases within true exons by these alignments were calculated.
