From genome to “venome”: Molecular origin and evolution of the snake venom proteome inferred from phylogenetic analysis of toxin sequences and related body proteins

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 11.Figure 11.
Figure 11.

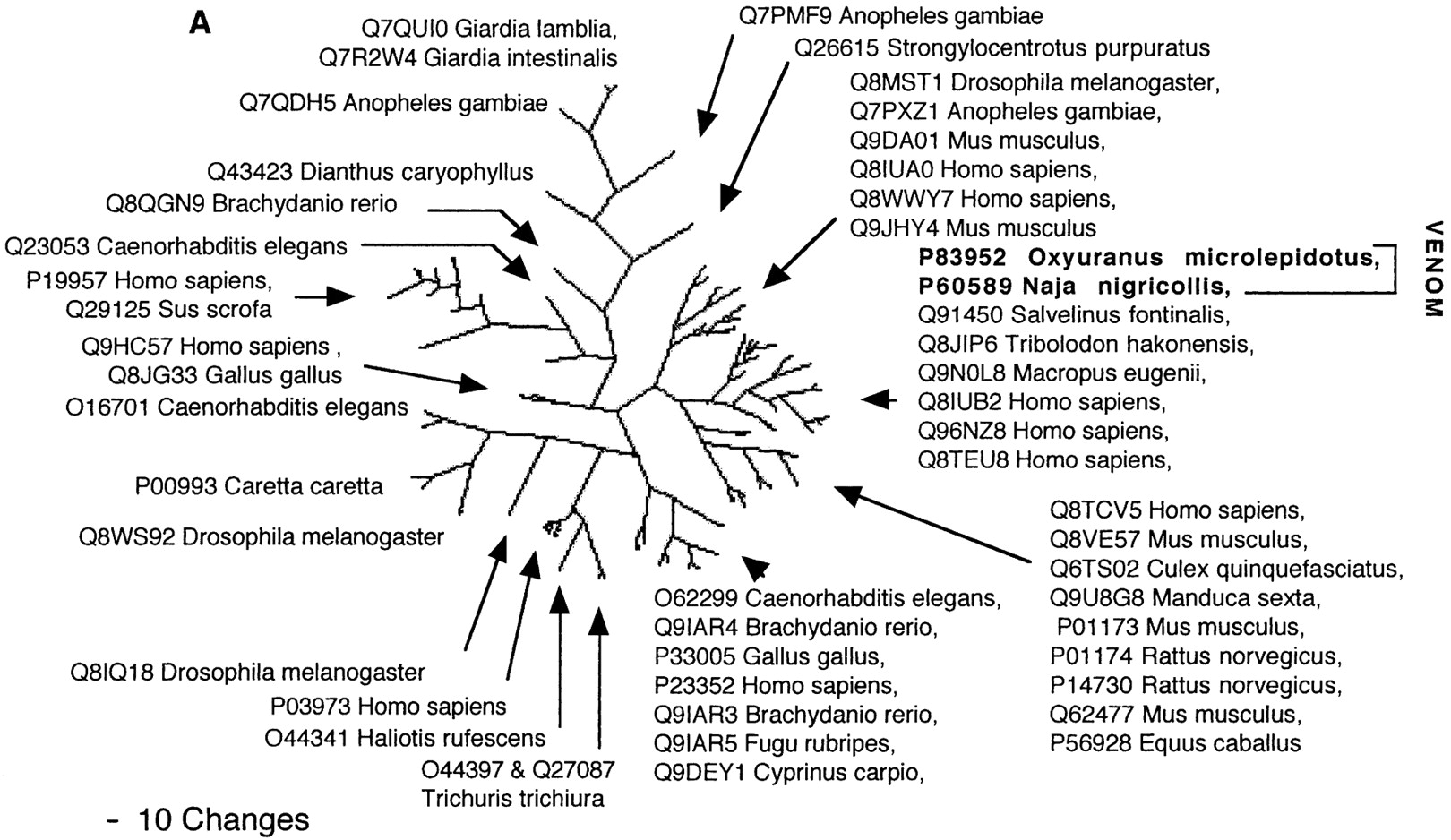

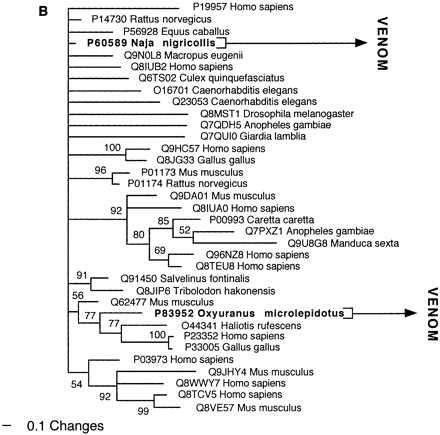

Molecular phylogenetic analysis of whey acidic proteins/secretory leukoproteinase inhibiting peptides-related sequences (A) Unrooted maximum parsimony network and (B) Outgroup rooted Bayesian analysis. Representative toxin and nontoxin sequences are labeled. In order to minimize confusion, all proteins sequences are referred to by their SWISS-PROT accession numbers (http://www.expasy.org/cgi-bin/sprot-search-ful). Snake venom sequences are in bold.
