From genome to “venome”: Molecular origin and evolution of the snake venom proteome inferred from phylogenetic analysis of toxin sequences and related body proteins

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 10.Figure 10.
Figure 10.

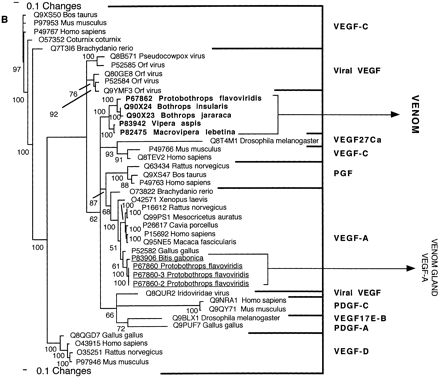

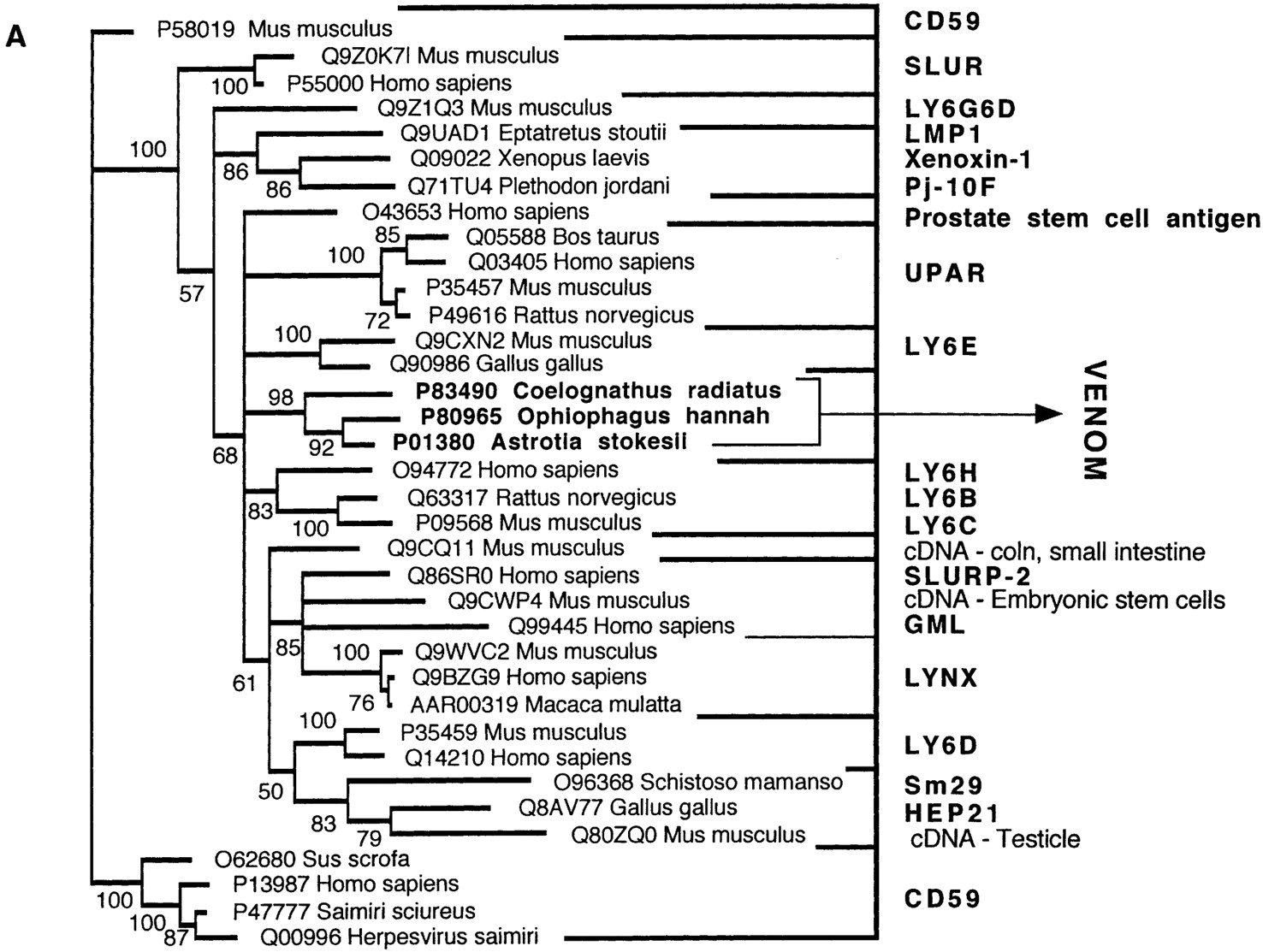

Bayesian analysis of representative (A) 3FTx/LYNX/SLUR and (B) VEGF-related sequences. In order to minimize confusion, all sequences are referred to by their SWISS-PROT accession numbers (http://www.expasy.org/cgi-bin/sprot-search-ful). Snake venom sequences are in bold. Snake body proteins are underlined.
