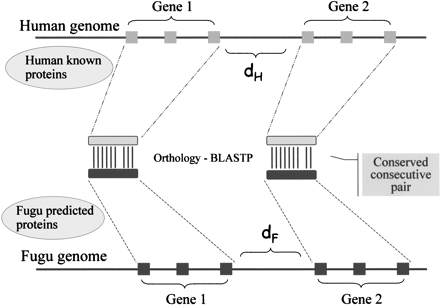

Figure 2.
Identification of conserved consecutive gene pairs between human and Fugu genomes. An orthology between human and Fugu proteins (light and dark boxes, respectively) was defined using BLASTP as described in Methods; mappings of proteins to the human and Fugu genomes (light and dark boxes, respectively) were used to define a consecutive pair and to calculate the distance between the coding sequence coordinates in each pair (dH and dF for human and Fugu, respectively).
