Figure 1.

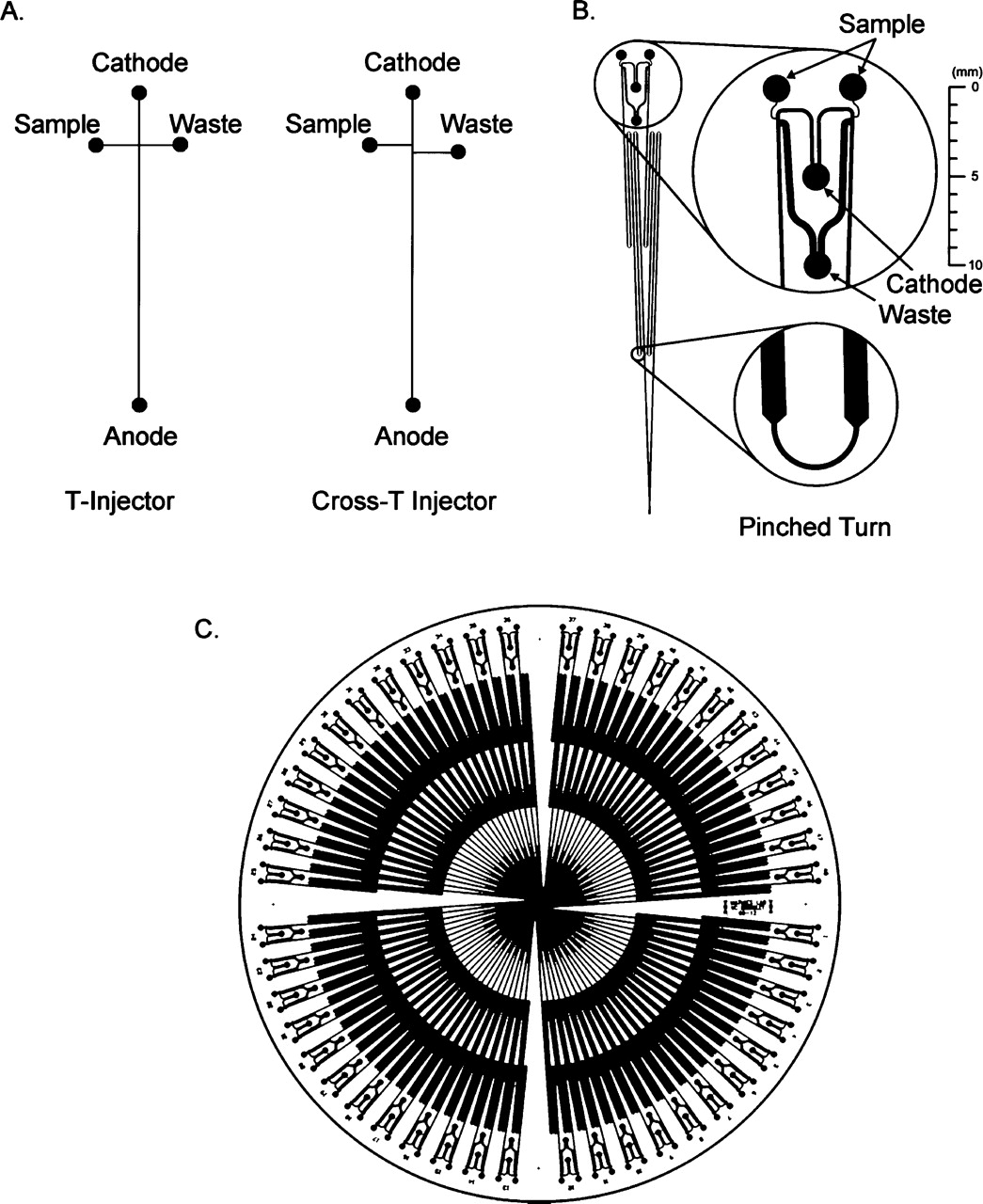

Microfabricated technologies. (A) Examples of a T-injector and cross-T injector layout. (B) Expanded view of the sample injector and pinched turn. (C) Schematic of the 96 channels in a radial chip design. (B,C) Reprinted with permission from National Academy of Sciences, U.S.A. © 2002, Paegel et al. 2002.
