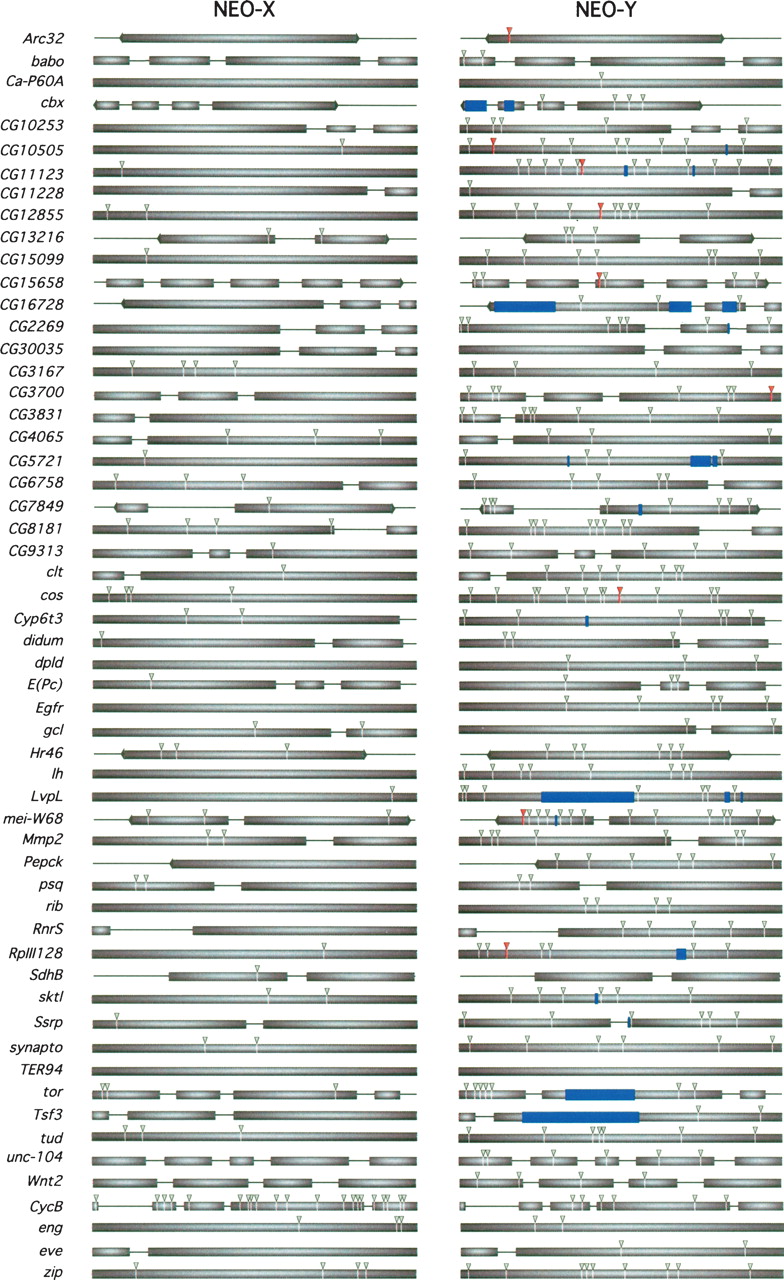

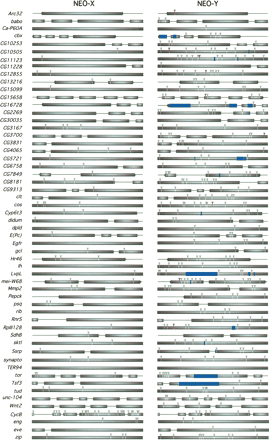

Figure 4.
Evolution of protein-coding genes on the neo-sex chromosomes. Boxes correspond to exons (with left or right arrows corresponding to the first or last exon of a gene, respectively), and lines correspond to introns or flanking intergenic regions. Gray triangles indicate amino acid changes, blue bars represent frameshift deletions, and red triangles correspond to premature stop codons.
