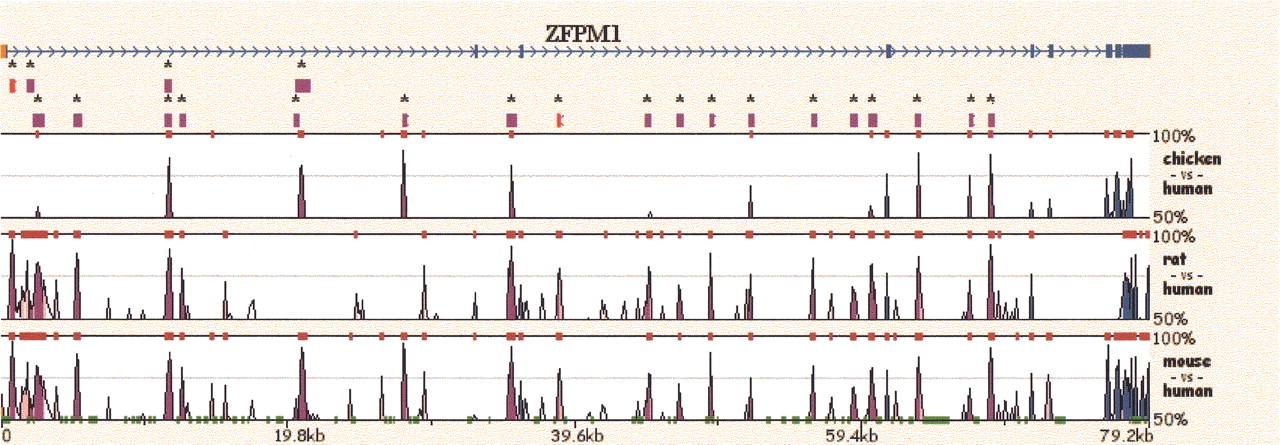

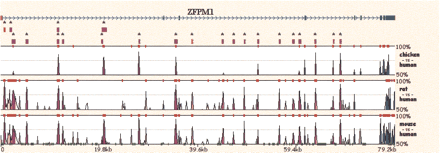

Figure 7.
Conservation of ZFPM1 among human, mouse, rat, and mouse, using TBA at the Mulan server. The large introns have several highly conserved regions. Those with conserved GATA-1 binding sites and high regulatory potential (predicted CRMs) are indicated by a set of purple and red blocks under the gene demarcated by star symbols. Red color of two block elements means that they are positive for binding GATA-1 in erythroid cells, as assayed by chromatin immunoprecipitation (Welch et al. 2004).
