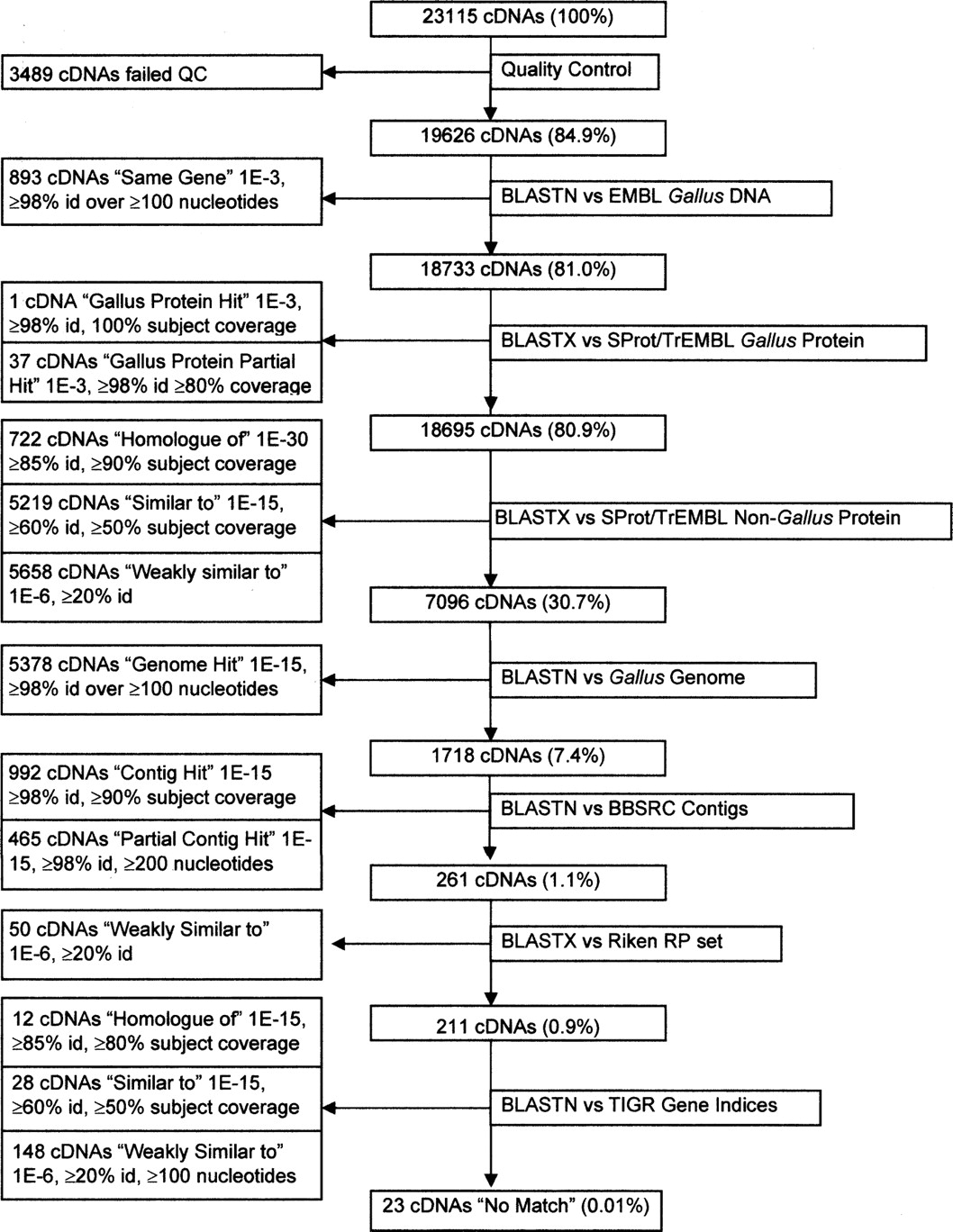

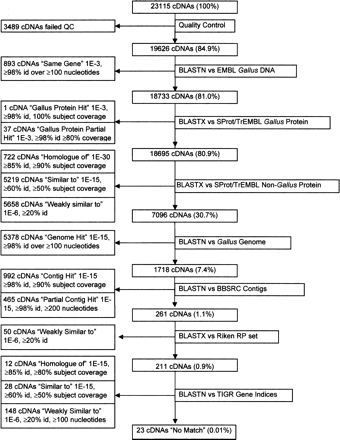

Figure 2.
cDNA Annotation pipeline. The diagram illustrates the pipeline that was used to annotate 19,626 finished cDNA sequences. The criteria for inclusion in any category are shown within the box for that category. Annotations are assigned in a top-down approach as indicated, leaving a final count of 23 unmatched cDNAs.
