Phylogenetic Footprint Analysis of IGF2 in Extant Mammals

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

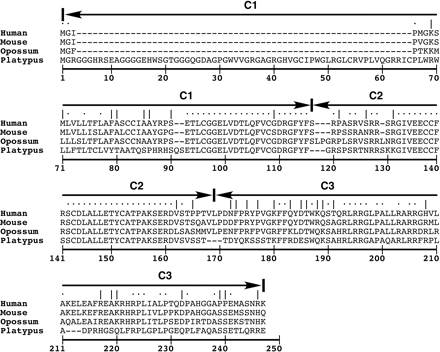

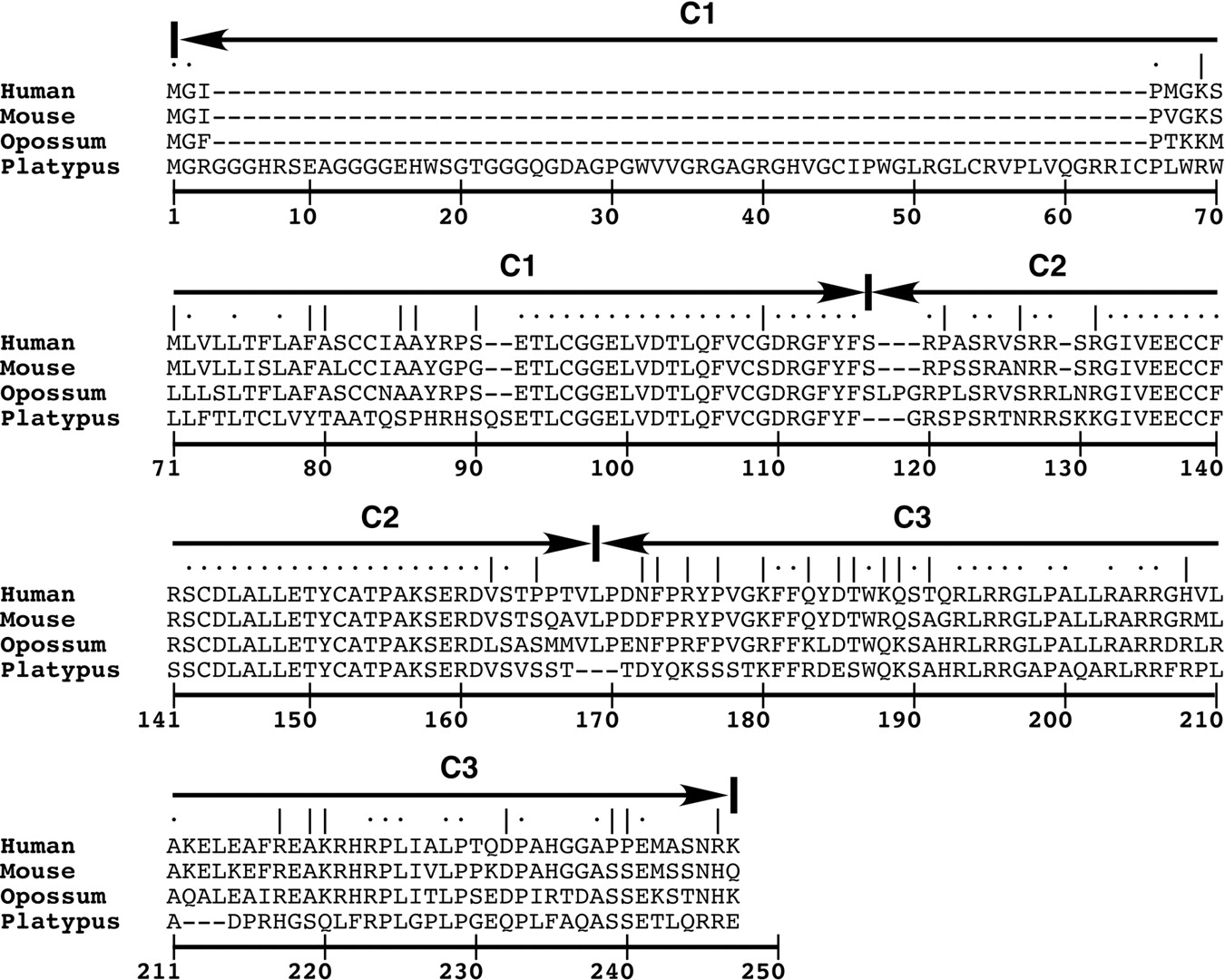

Figure 3
Figure 3

Amino acid alignment of human, mouse, opossum, and platypus IGF2. (Solid arrows) Coding exons, C1, C2, and C3; (dots above sequence) perfect amino acid agreement; (vertical slash) conservative amino acid change. Mature IGF2 peptide, amino acids 87 to 160.
