Clustering of DNA Sequences in Human Promoters

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

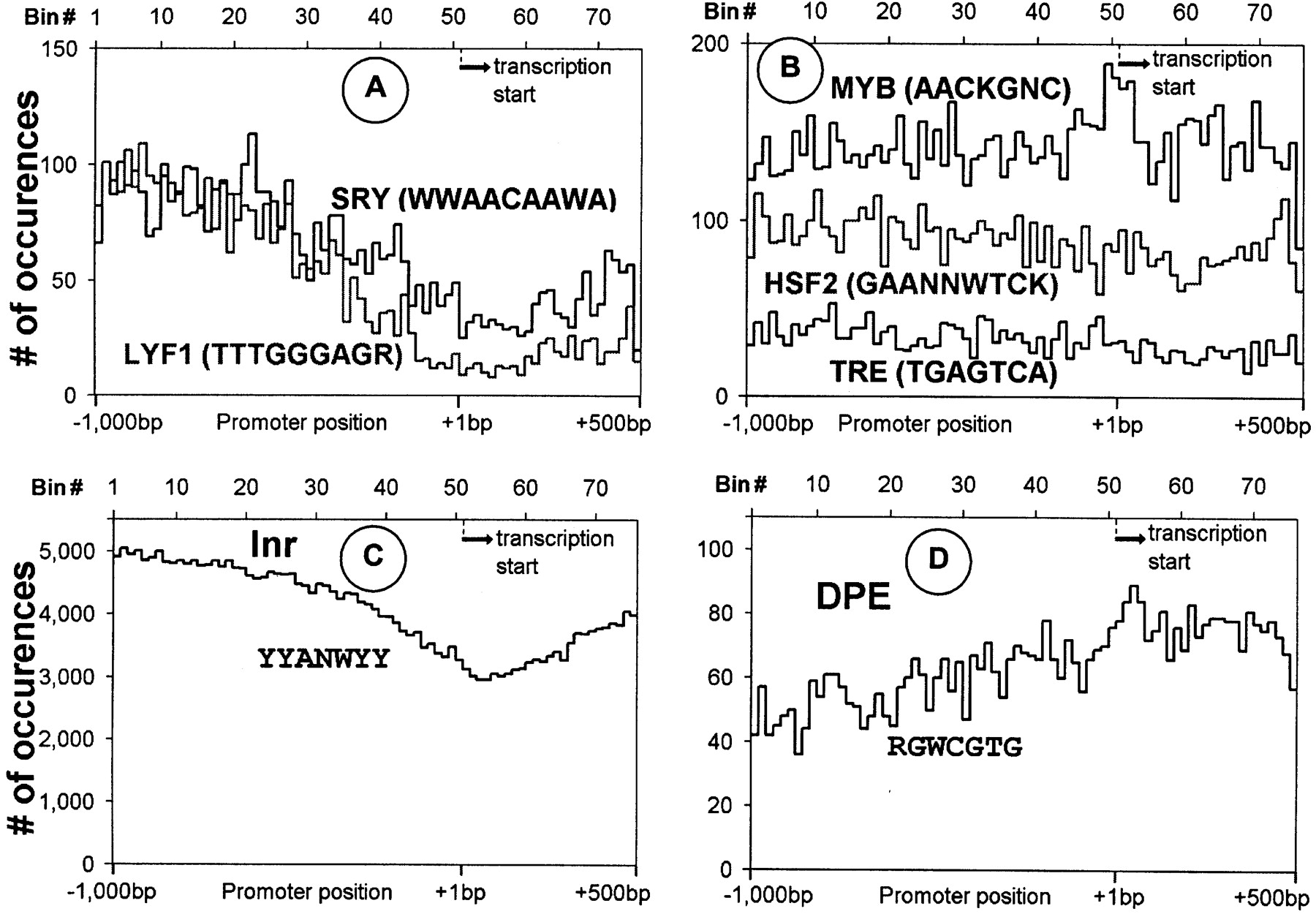

Figure 9
Figure 9

Distribution of selected sequences from the TRANSFAC database that are underrepresented near the TSS, SRY (WWAACAAWA), and LYF1 (TTTGGGAGR; Ikaros; A); and uniformly distributed, Myb (AACKGNC), HSF2 (GAANNWTCK), and TRE (TGAGTCA; B). (C) The core promoter element Initiator, Inr (YYANWYY). (D) The core promoter element downstream promoter element, DPE (RGWCGTG).

This Article

  1. Published in Advance July 15, 2004, doi: 10.1101/gr.1953904 Genome Res. 14: 1562-1574
