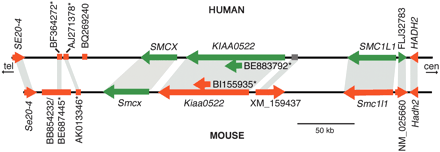

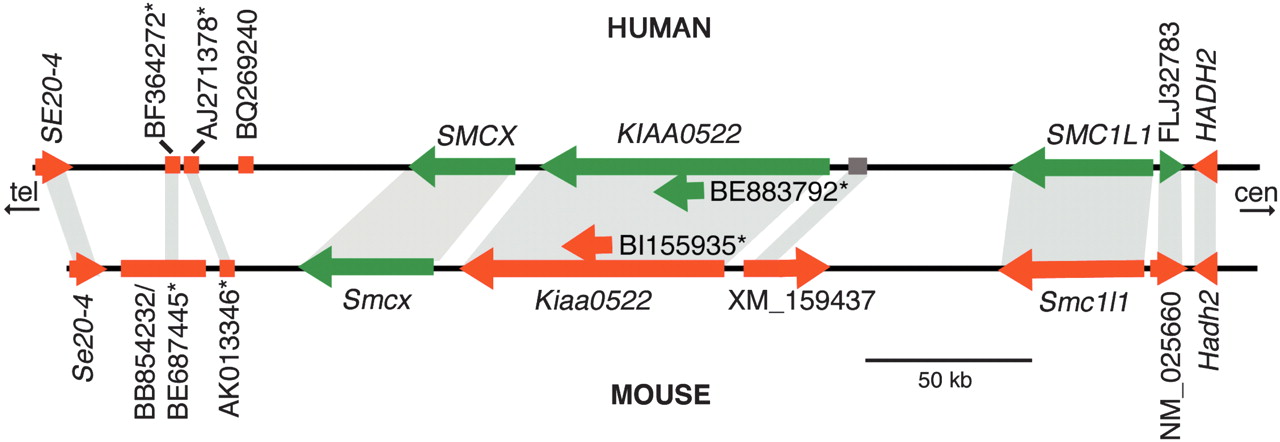

Schematic diagram of the human domain of escape from Xp11.2 and the corresponding region of conserved synteny in the mouse. Loci that escape are represented by green arrows or lines and those that are inactivated are in red. The X-inactivation status of the human XM_159437-like locus could not be determined (see Results). When known, the transcriptional orientation is indicated by the direction of the arrow. Orthologs are indicated by shaded regions. Sequences designated with an asterisk may not represent independent transcripts (see Results). Alternative names for transcripts/ESTs are as follows: SE20–4/Se20–4 = DXHXS1008E = TSPX/Tspx; AK055575 = SMC1L1 = SB1.8; ADS13 = FLJ32783; W08639 = NM_025660; ADS9 = HADH2.
