Complete MHC Haplotype Sequencing for Common Disease Gene Mapping

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 1
Figure 1

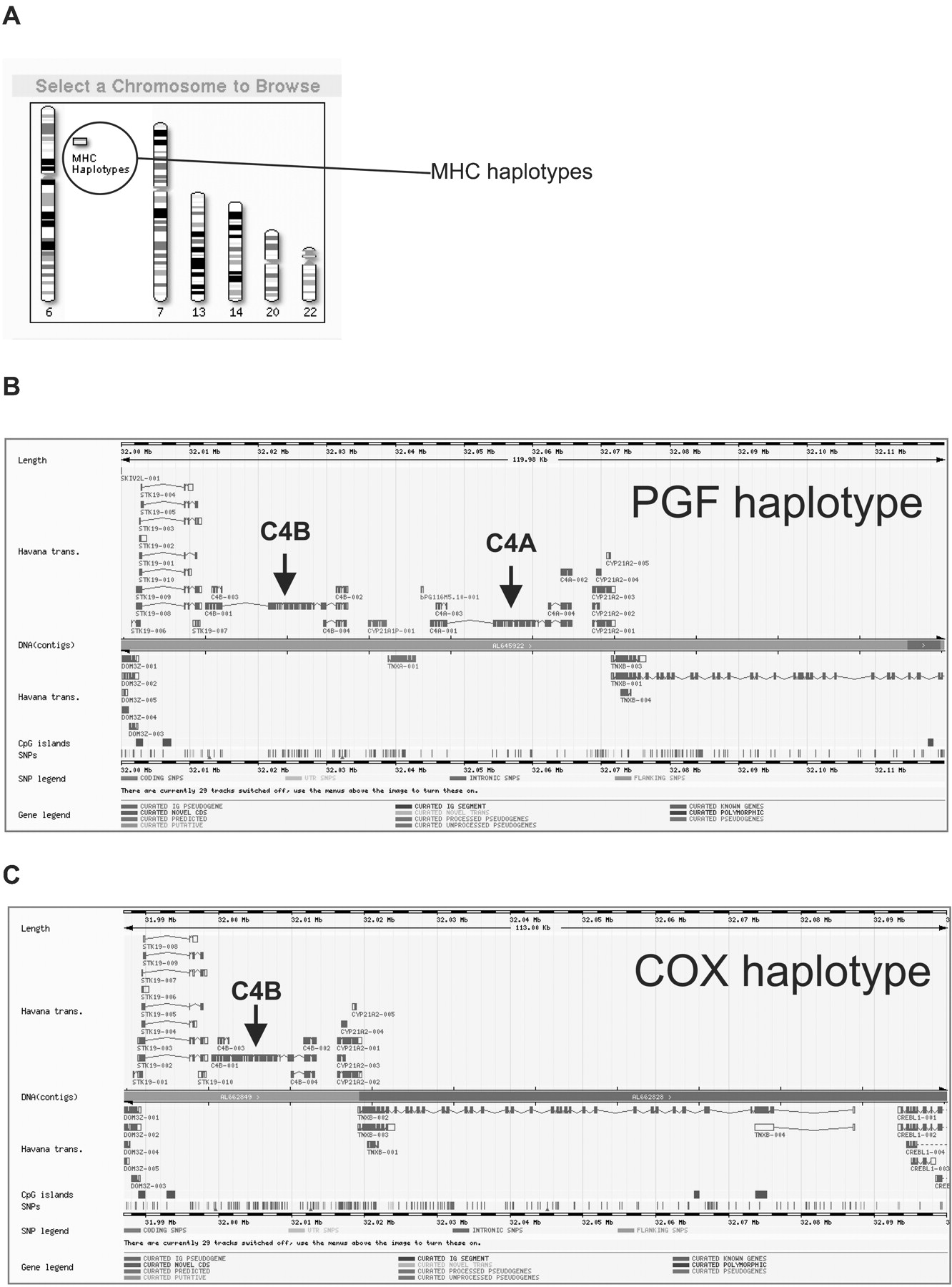

Representation of the PGF and COX haplotypes in the VEGA genome annotation browser. (A) Title screen showing the availability of annotated MHC haplotypes. (B,C) Manually curated gene structures in the RCCX region (see Fig. 3 and accompanying text). The PGF haplotype has two copies of the gene for complement component C4 (C4A and C4B), whereas COX has only one (C4B).

This Article

  1. Published in Advance May 12, 2004, doi: 10.1101/gr.2188104 Genome Res. 14: 1176-1187
