Figure 3

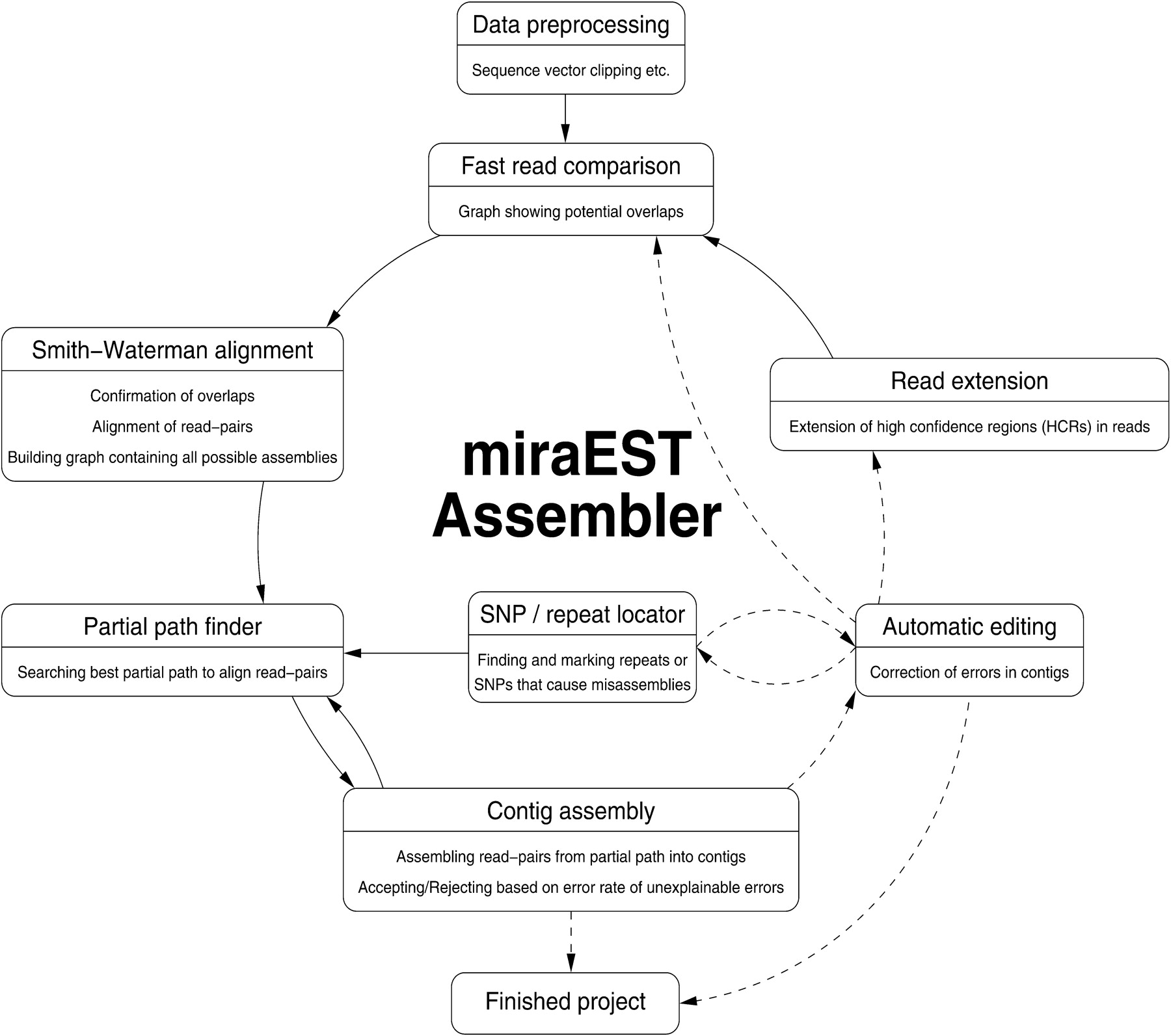

The multipass and iterative nature of the assembler becomes clear as in this schematic diagram of the phases of a miraEST assembly. Previously unknown information (like possible SNP sites) can be discovered and taken into account throughout all of the assembly stages. Solid arrows show imperative pathways, dashed arrows denote optional pathways that may or may be not taken, depending on assembly parameter values and the actual data.
