Comparative Genomic Hybridization Provides New Insights Into the Molecular Taxonomy of the Saccharomyces Sensu Stricto Complex

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

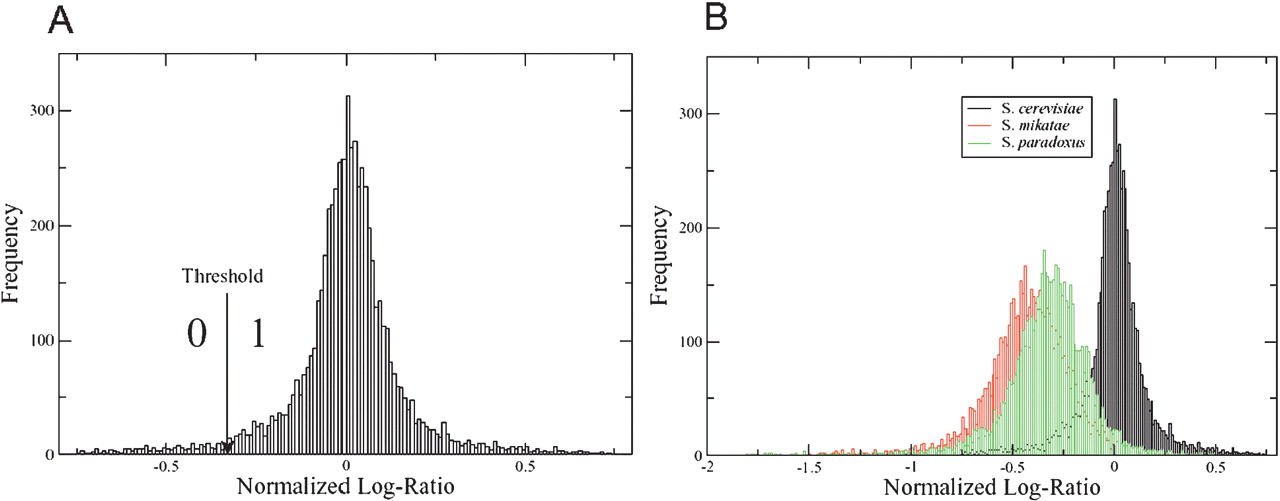

Figure 1
Figure 1

Stages of phylogeny construction. (A) A histogram of log. ratios (normalized) from the self–self hybridizations. The normalized log. ratio is used as a measure of divergence, for each particular ORF, from the reference species S. cerevisiae FY1679. The threshold, shown by the solid arrow, is chosen so that few ORFs in the self–self hybridizations have a normalized log. ratio below the threshold. (B) Histograms of normalized log. ratios from other species in comparison to the self–self data.
