The Small Chromosomes of Trypanosoma brucei Involved in Antigenic Variation Are Constructed Around Repetitive Palindromes

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

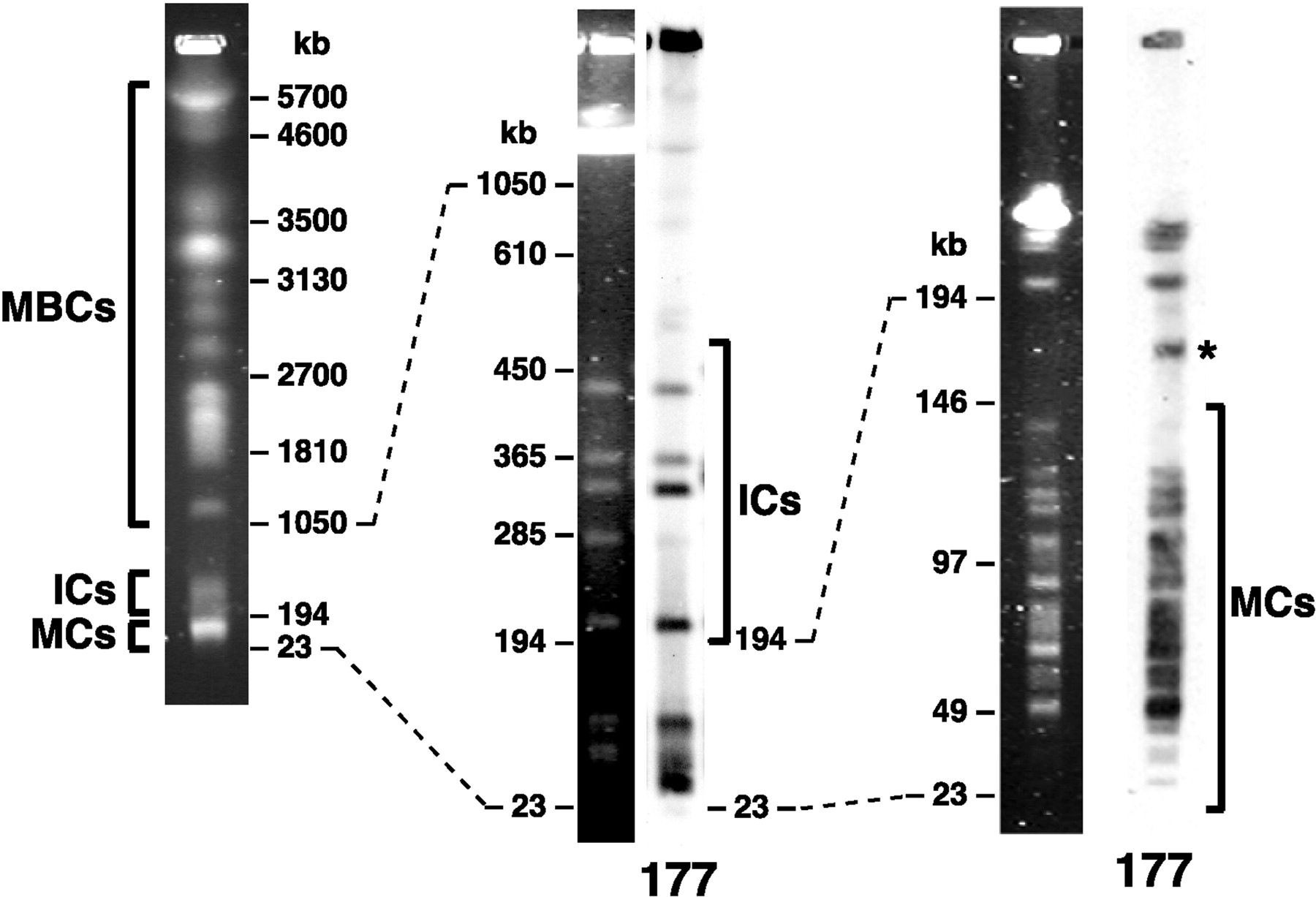

Figure 1
Figure 1

The karyotype of Trypanosoma brucei as assessed by pulsed-field gel electrophoresis of whole-chromosome-sized DNAs. The chromosomes fall into three classes: megabase-sized chromosomes (MBCs), intermediate-sized chromosomes (ICs), and minichromosomes (MCs). ICs and MCs contain large quantities of a 177-bp satellite repeat sequence, as shown by hybridization to labeled repeat (177). This repeat is also found on a circular extrachromosomal element of ∼70 kb, which runs aberrantly on pulsed-field gels (star).
