Figure 2

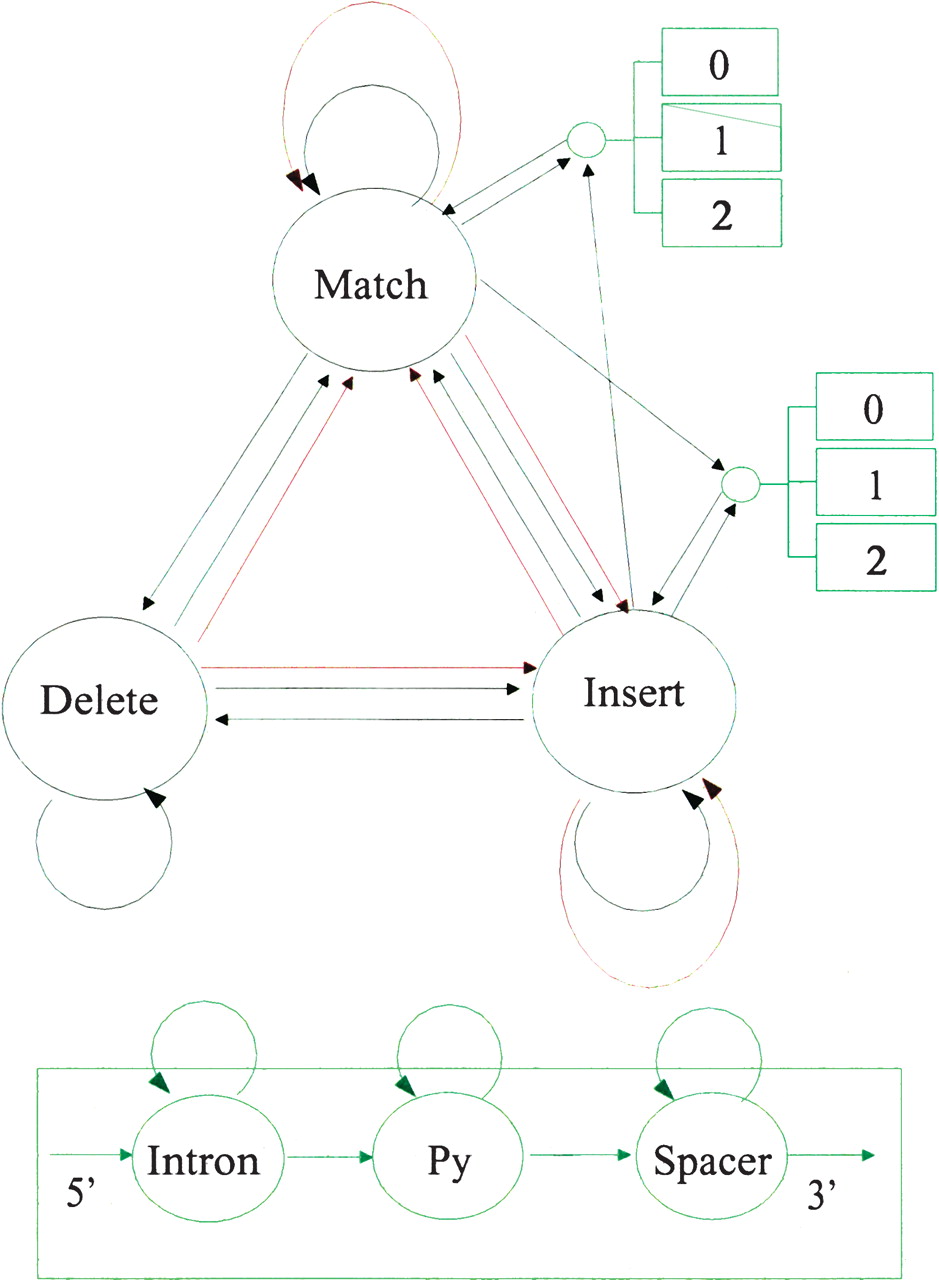

The GeneWise21:93 algorithm. The circles represent states, and the arrows between them transitions. Black transitions are standard protein transitions, red transitions are frameshifting transitions, and green transitions are intronic transitions. Introns are each built of three states, listed at the bottom of the figure.
