Tracking the Evolution of the SARS Coronavirus Using High-Throughput, High-Density Resequencing Arrays

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

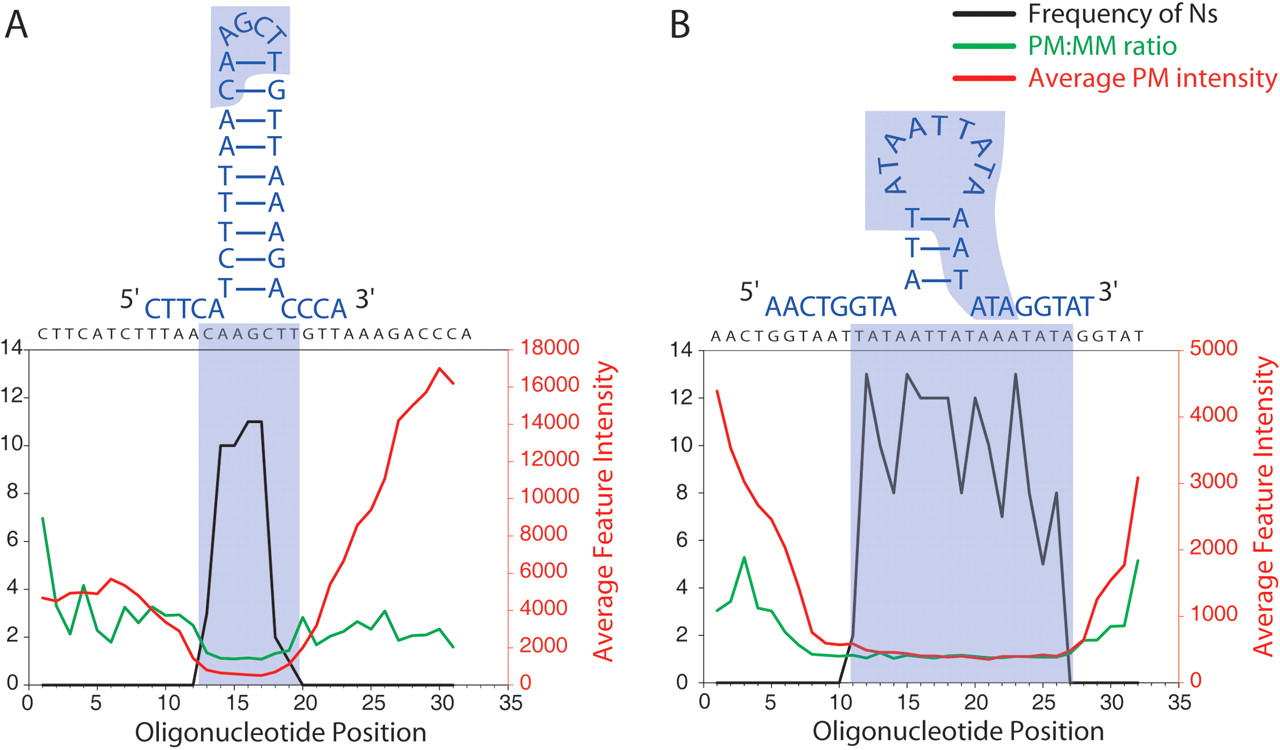

Figure 4
Figure 4

Effects of secondary structure on probe annealing and ambiguous calls. The most stable structure as predicted using GeneRunner software, is illustrated for two sequences with recurrent Ns; (A) bases 25953–25959, (B) bases 22781–22796. In both cases, the frequency of ambiguous calls peaks at the bases within the predicted loop structure.
