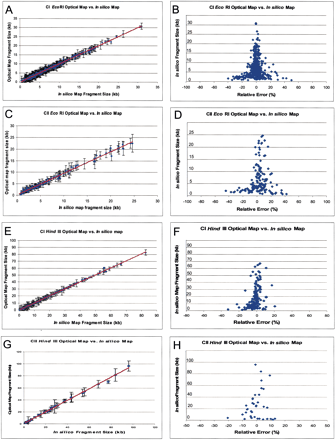

Figure 2
Comparisons of the HindIII and EcoRI optical maps of R. sphaeroides chromosome I (CI) and chromosome II (CII) to sequence data. (A) (CI EcoRI), (C) (CII EcoRI), (E) (CI HindIII) and (G) (CII HindIII) are the plots of optical map fragment sizes versus the in silico map fragment sizes from finished sequence. The error bars represent the standard deviation of optical map fragment size on the means. (B) (CI EcoRI), (D) (CII EcoRI), (F) (CI HindIII), and (H) (CII HindIII) show plots of the absolute error of optical fragment size versus sequence.
