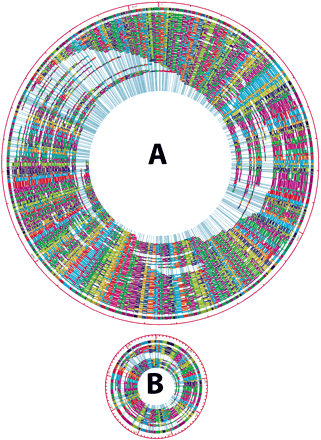

Whole-genome EcoRI optical map contigs of chromosome I and II of R. sphaeroides 2.4.1. (A) Chromosome I circular map contig. The outermost multicolored ring shows the consensus map calculated by Gentig. The consensus map was built from the shown underlying maps, obtained from individual DNA molecules, and represented here as multicolored arcs. Congruent restriction fragments, shown in the consensus map are denoted by common color; the color coding scheme is random to enhance contrast. Missing cuts are displayed as fragments that span across one or more cut sites in the consensus map. (B) Chromosome II circular map contig; display scheme is the same as (A).
