Assessment of Genome-Wide Protein Function Classification for Drosophila melanogaster

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 4
Figure 4

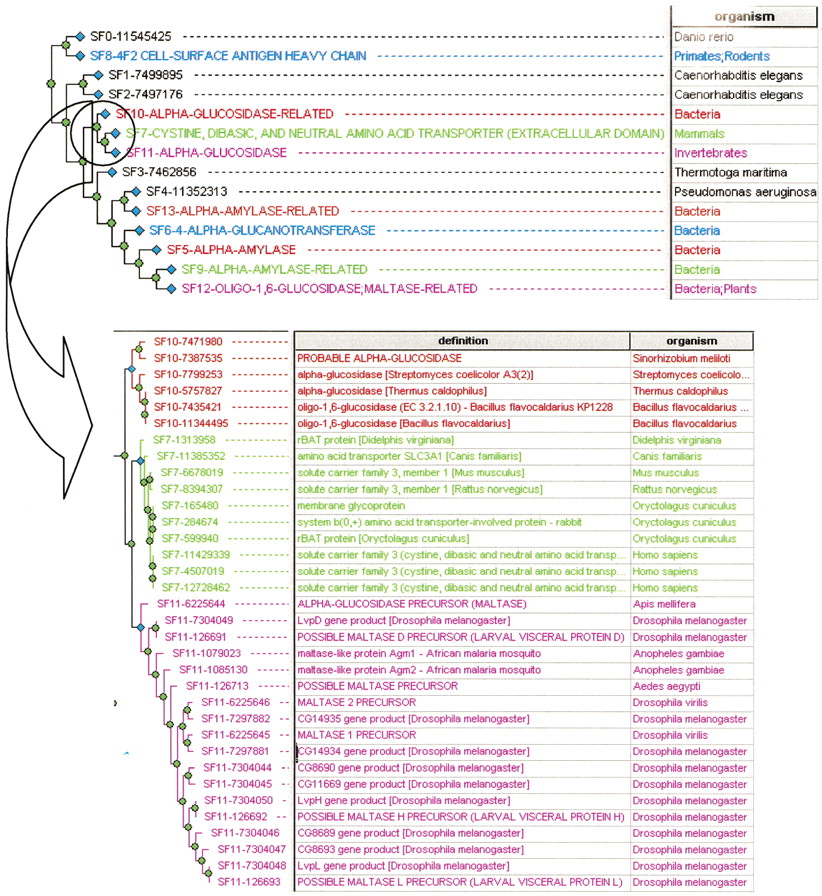

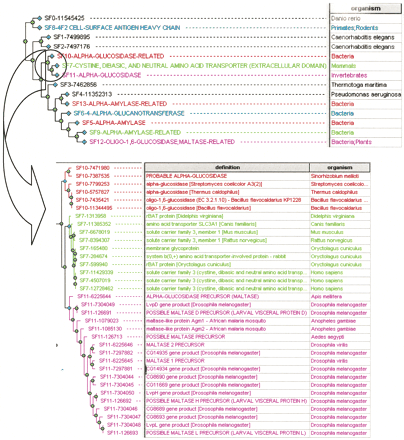

Function inference in the context of a protein sequence tree. This is the PANTHER tree-attribute view, with a sequence-derived tree in the left panel, and a table of sequence (or subfamily) attributes in the right panel. The top figure shows the tree “collapsed” into curator-defined subfamilies. Note that the transporter subfamily (SF7, in green) has been separated by the curator from neighboring groups of proteins that are α-glucosidase-related (SF10 in red, and SF11 in pink). The bottom figure shows the “expanded” view with information about each sequence taken from GenBank and SWISS-PROT.
