Figure 2

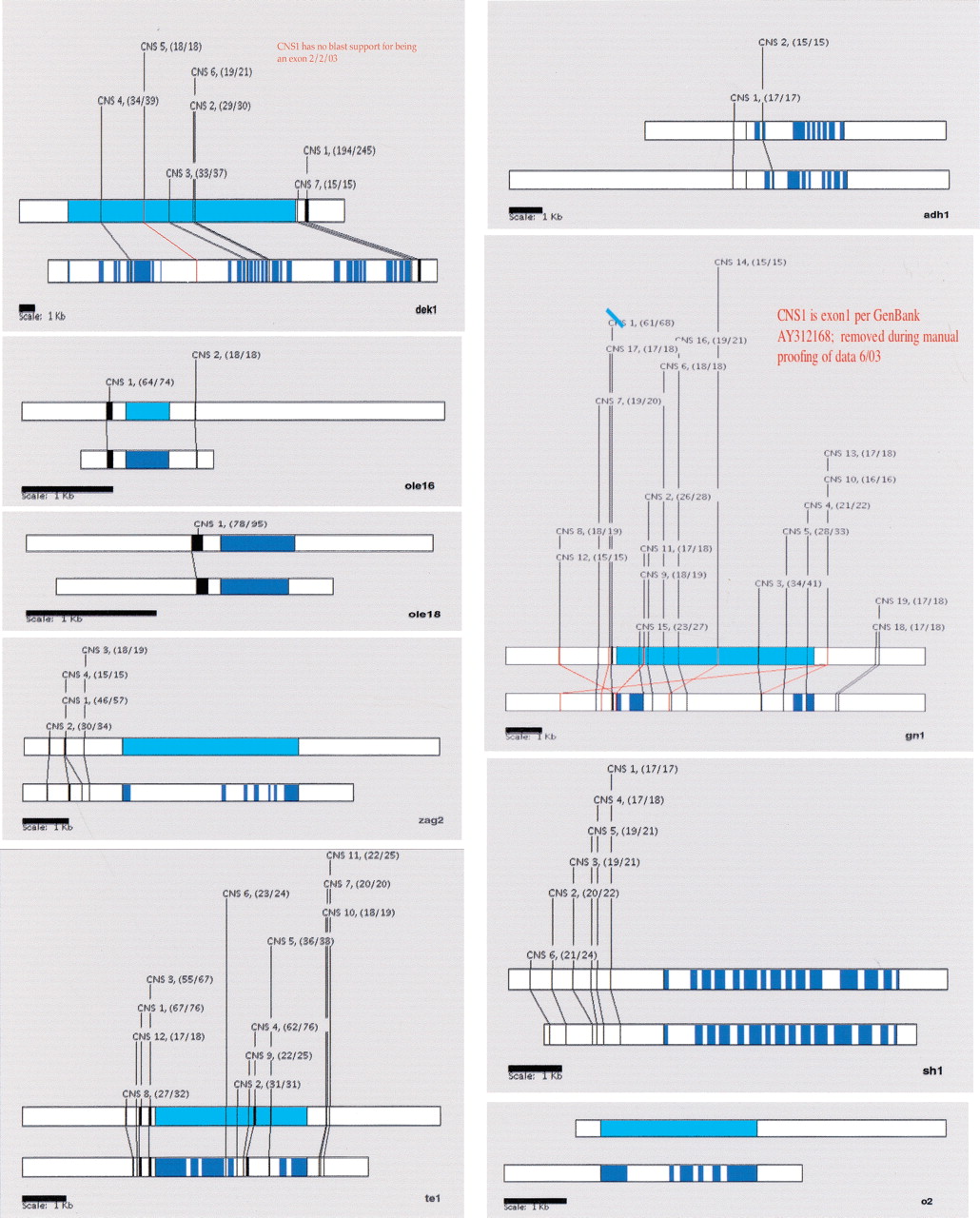

Examples of CNS graphic readouts from our 52 genes. From the upper right corner and moving clockwise, alcohol dehydrogenase1-F, homeobox gene gnarley1, shrunken1 encoding an enzyme, downstream bZip gene opaque-2, RNA binding motif gene terminal ear1, MADS-box zea agamous2. oleosin16 and 18, and defective kernel1 encoding a membrane-bound calpain. Red lines indicate change of strand. A blue line through a CNS denotes removal during manual proofing of data.
