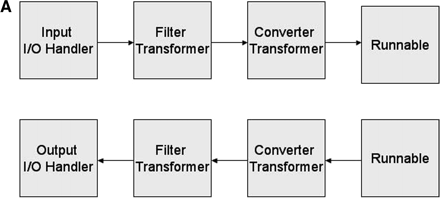

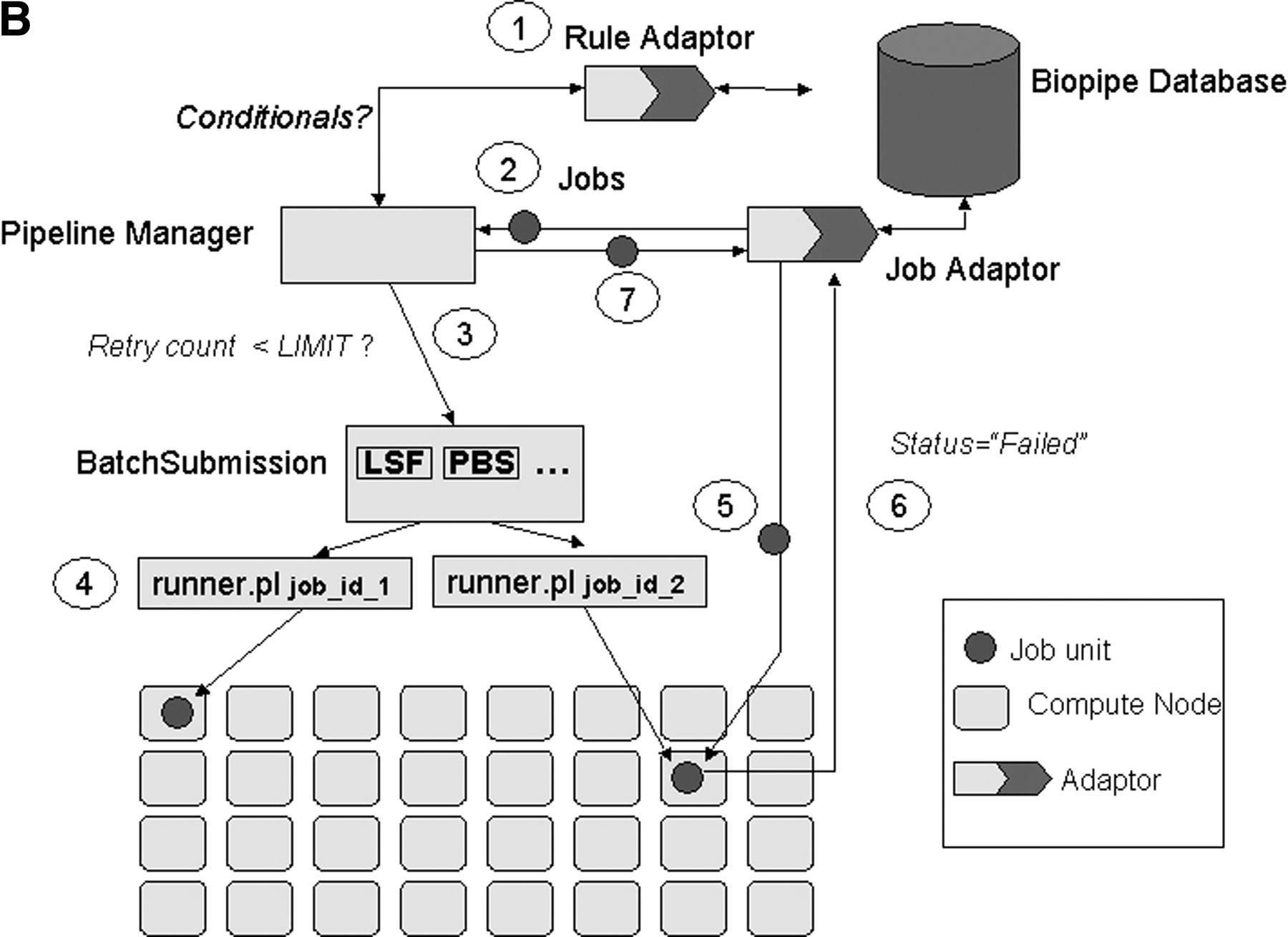

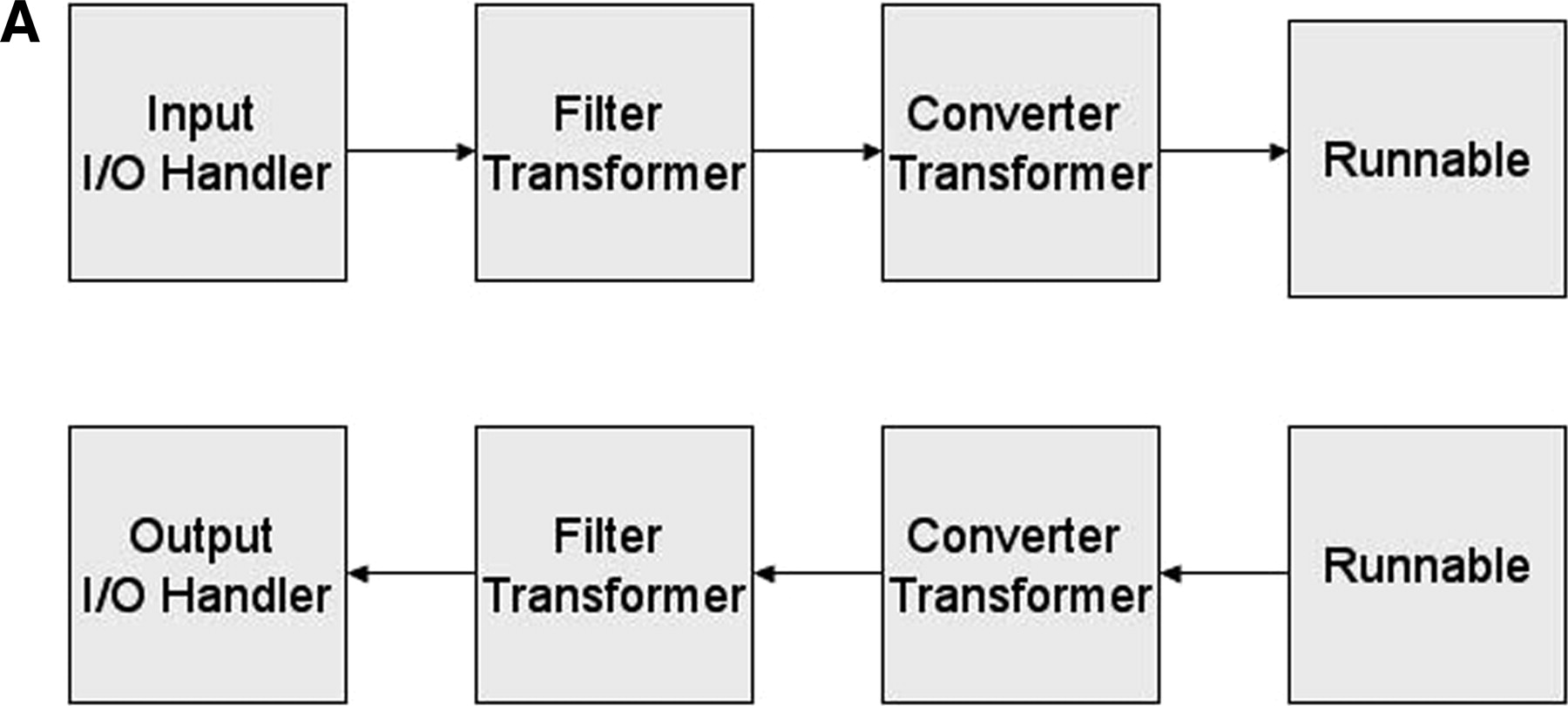

(A) A single job unit, made up of three components. The input I/Ohandler tells the job how and where to fetch the input for the analysis. The analysis component tells the job what to run on the input. The output I/Ohandler tells the job how and where to store the results of the analysis. (B) (1) Rules are fetched via the Rule Adaptor when PipelineManager starts up. (2) A Job Unit/object is fetched via the JobAdaptor. Only Jobs with status NEW or FAILED are considered for job submission. (3) Jobs are submitted via the Batch Submission object. FAILED jobs are checked against a retry limit before being submitted. (4) The mechanism for job submission: A runner.pl script is passed along with the job ID to the underlying load-sharing software that dispatches the execution of the script to one of the compute nodes. (5) At the node, the job is recreated by fetching the job unit via the JobAdaptor using the job ID. (6) The job updates its running status during execution. (7) The PipelineManager creates new jobs for subsequent analysis according to rules and conditionals.
