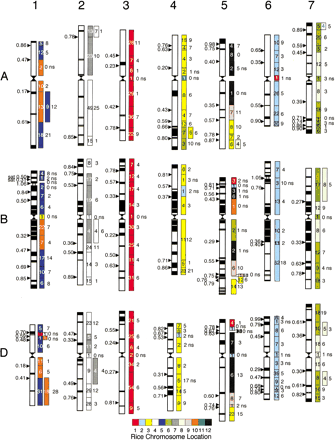

Figure 2
Wheat–rice genome relationships. (Left) The wheat C-banding karyotype indicating the positions of deletion breakpoints. (Right) Each deletion bin is color-coded according to the rice chromosome matching a significant number (χ2 P < 0.01) of wheat ESTs mapped to that bin. The number of those matches is indicated inside the colored rectangle, and the number of matches to all other rice chromosomes is adjacent. Nonsignificant association with a rice chromosome or insufficient data is indicated by “ns” adjacent to the bin.
