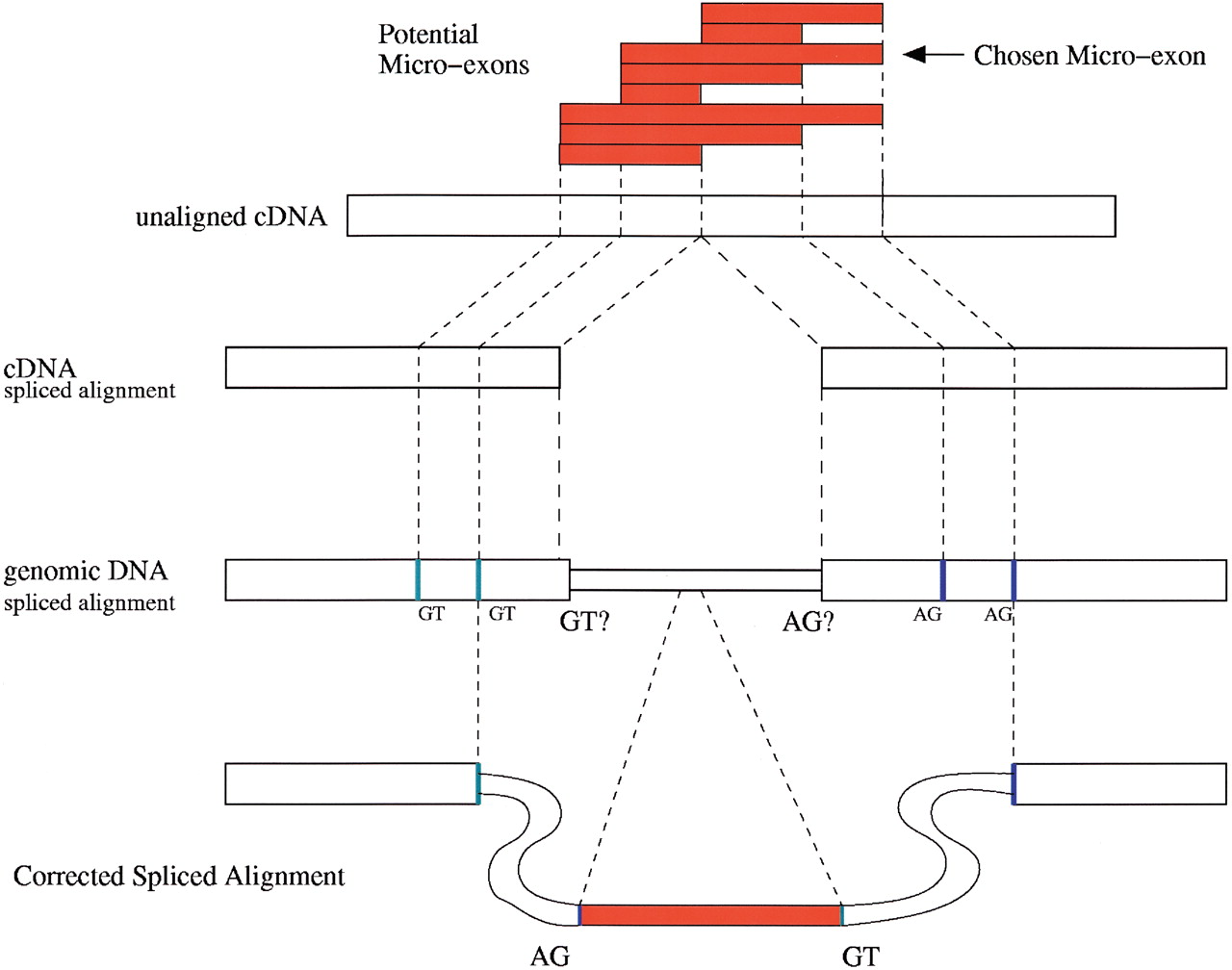

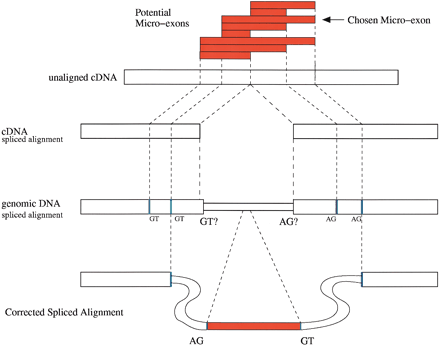

Figure 3
Spliced alignment correction algorithm. Combinations of consensus donor and acceptor splice sites adjacent to the flawed alignment boundaries are used to enumerate all potential micro-exons within the cDNA sequence. One of the potential micro-exons is localized to the genomic DNA intervening the alignment segments, flanked by consensus splice sites, yielding the identity and position of the newly discovered micro-exon.
