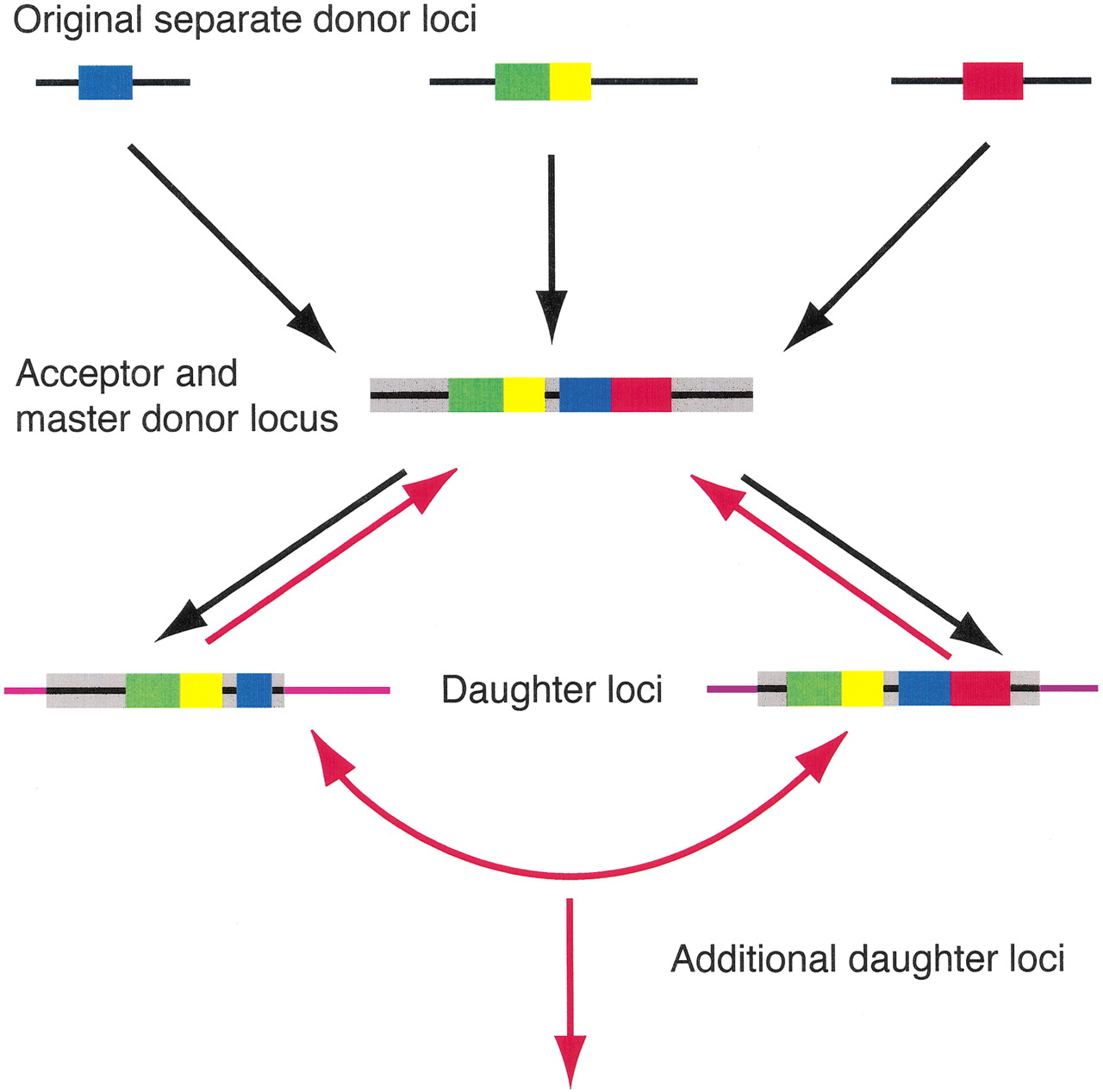

Figure 7.
Model of segmental duplication extended from the model proposed bySamonte and Eichler (2002). The model begins with donor loci separated in the genome and proceeds sequentially in time down through the development of the master donor and daughter loci. Black arrows indicate Samonte and Eichler’s formulation of the model. Red lines indicate additional steps added to extend the model to accommodate data from the 7E SDs (see text).
