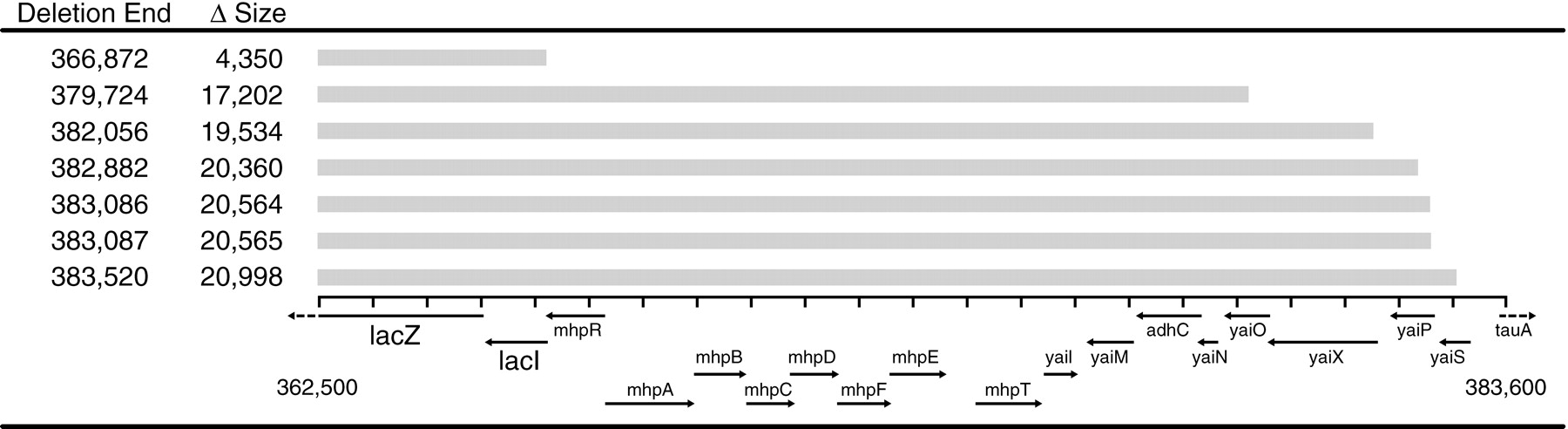

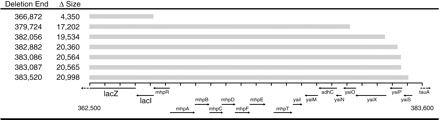

Figure 3.
Deletions characterized for the lactose operon region. Genes deleted inE. coli MG1655 with the deletion transposon Tn5Del7 are shown by a gray line for each of the seven deletions in thelac operon. The insertion site was located 362,522 bp in theE. coli chromosome within the lacZ gene.
