Centromere Satellites From Arabidopsis Populations: Maintenance of Conserved and Variable Domains

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 1.
Figure 1.

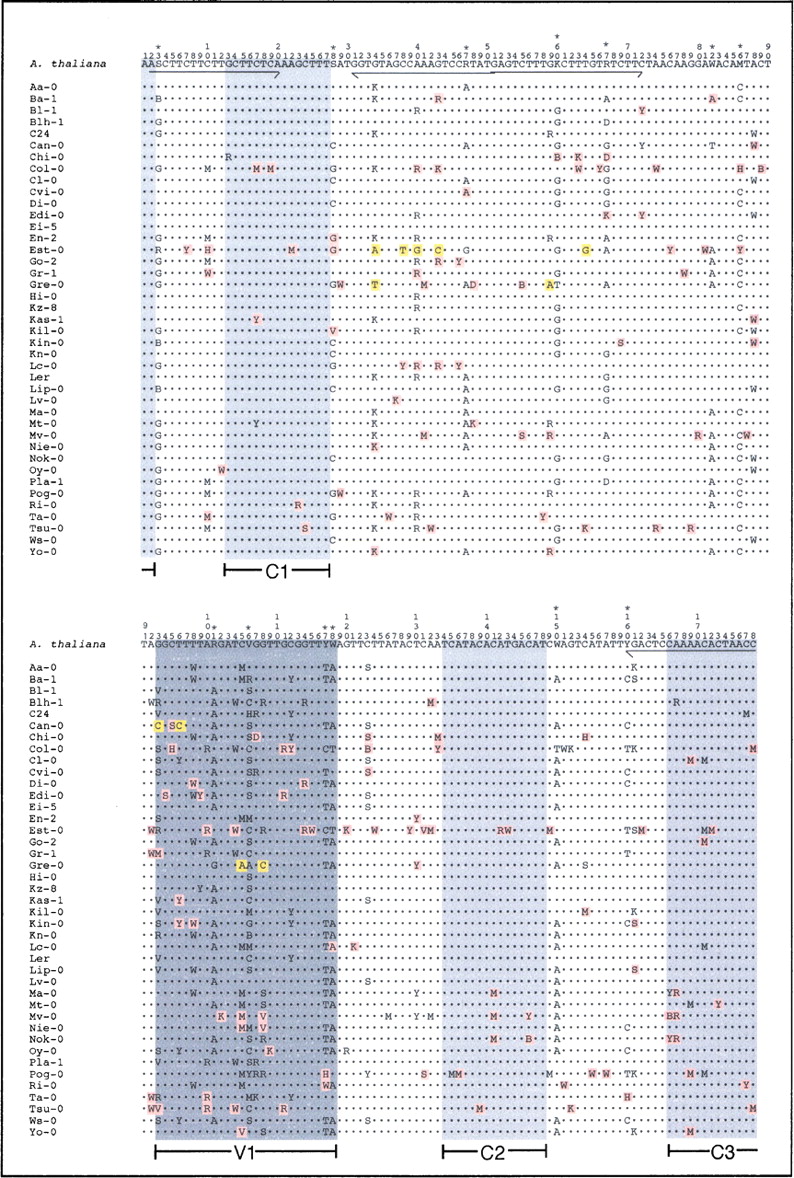

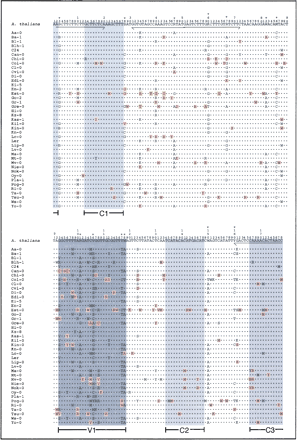

Satellite repeat consensus sequences from 41 Arabidopsisecotypes. (Upper row) The overall consensus for the species; (asterisks) sites defined as polymorphic. Consensus sequences derived for each ecotype are indicated; (dots) identical nucleotides; (shading) nucleotide changes that are significantly different from the species consensus (χ2 test, P < 0.01); (pink) changes observed in multiple ecotype consensus sequences; (yellow) changes uniquely found in one ecotype consensus. Arrows below the species consensus indicate the primers (F2, R2 and F4, R4) used to amplify the repeats; (gray shading) conserved (C1, C2, C3) and variable (V1) regions (see also Fig. 3).
