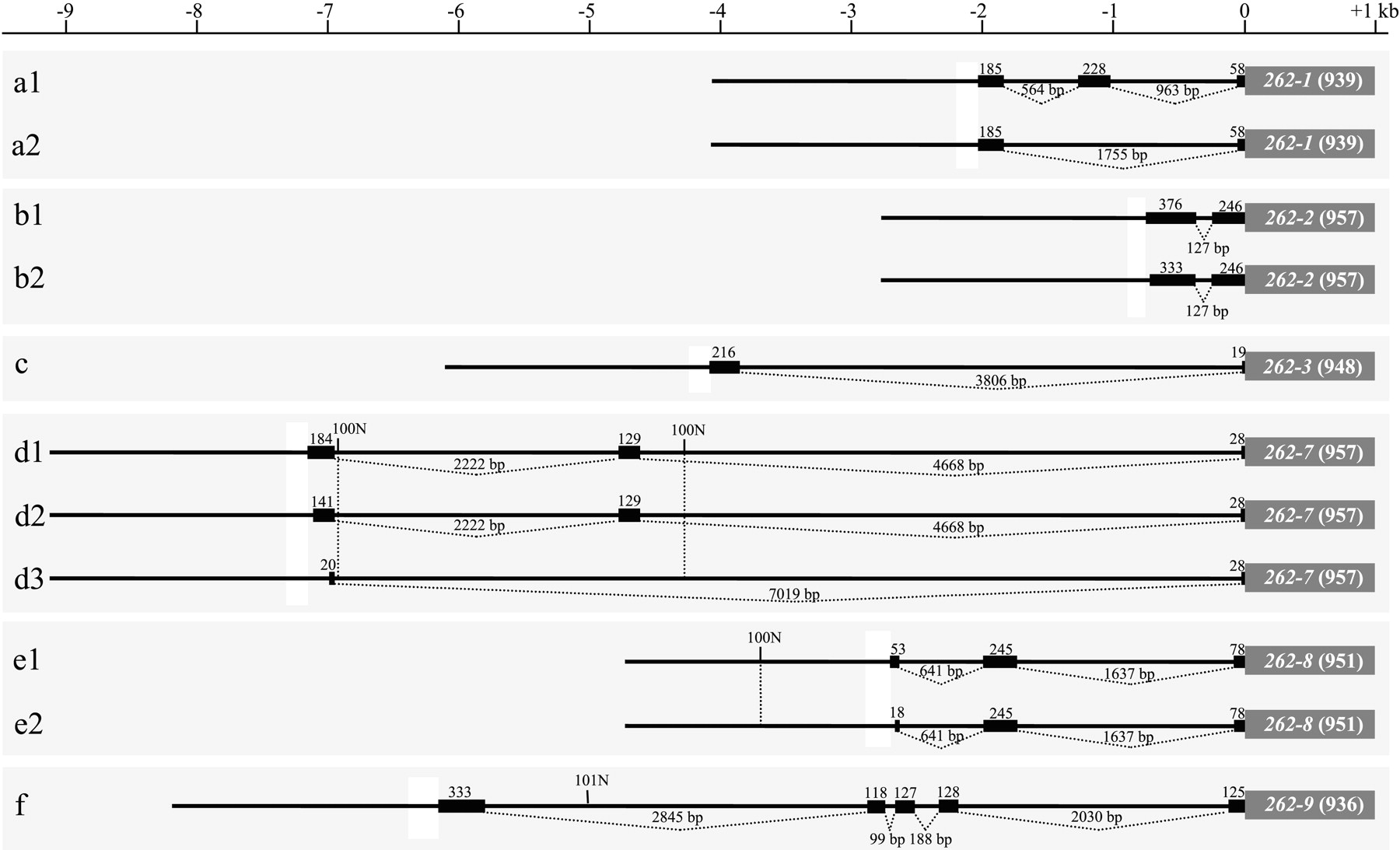

Figure 4
Gene structures of mOR-262 genes from cluster II based on 5′ RACE experiments.All genes are aligned according to the initial methionine (position 0 kb).Boxes represent exons; lines below indicate intronic regions (lengths are given in kilobases).White blocks upstream of the initial exons mark the extension of conserved sequence stretches.Alternatively spliced isoforms are indicated by sequential numbers.Regions which are not yet sequenced are indicated with number of Ns.Numbers in brackets indicate the length of the coding sequence in bp.
