Molecular Correlates of Genes Exhibiting RNAi Phenotypes in Caenorhabditis elegans

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 3
Figure 3

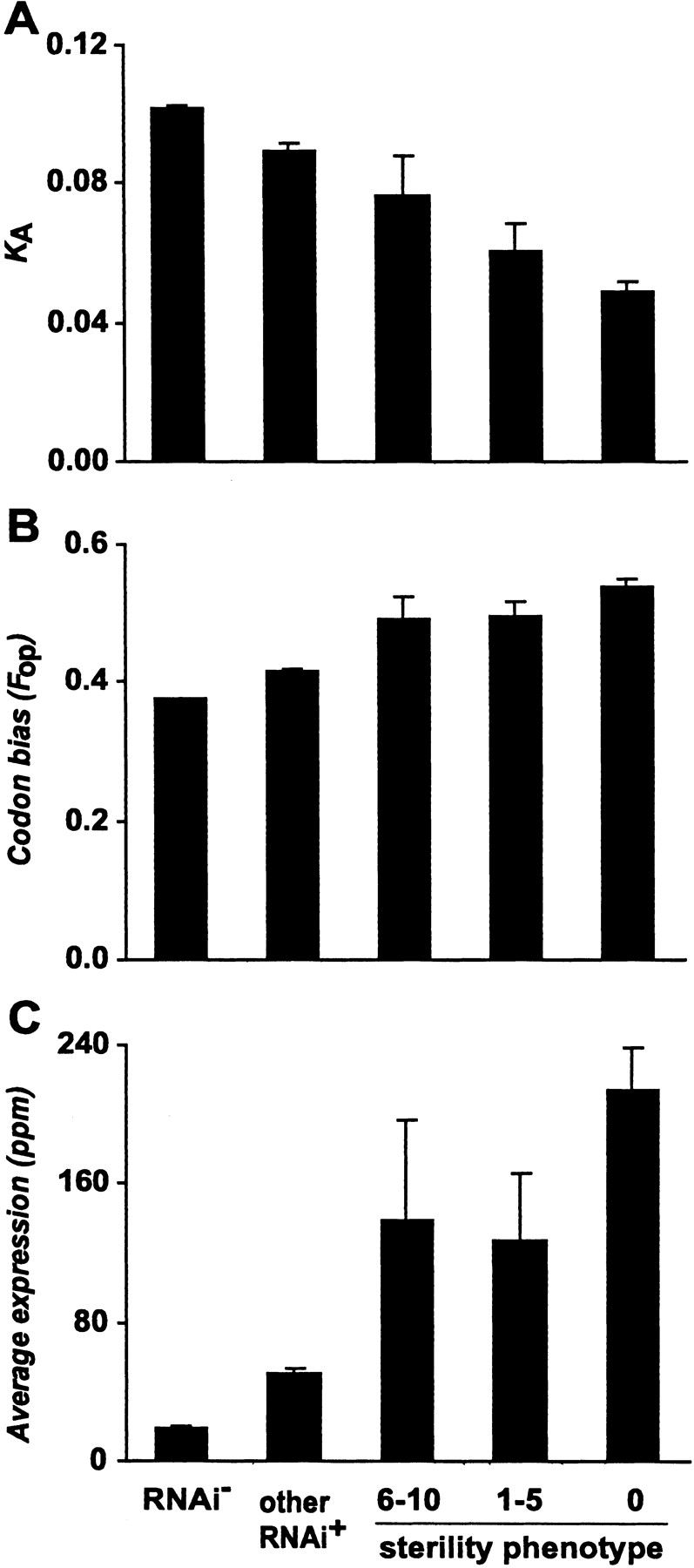

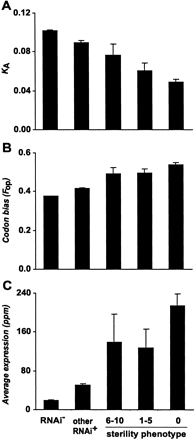

Nonsynonymous substitution rate (KA), codon usage bias (Fop), and average expression in genes assigned a sterility phenotype. Mean KA (A), Fop (B), and average expression (C) differ among genes with no observed phenotype (RNAi-), a nonsterile phenotype (other RNAi+), or a sterility phenotype characterized by 6-10, 1-5, or 0 offspring. Error bars, ±1 SE.
