Figure 5

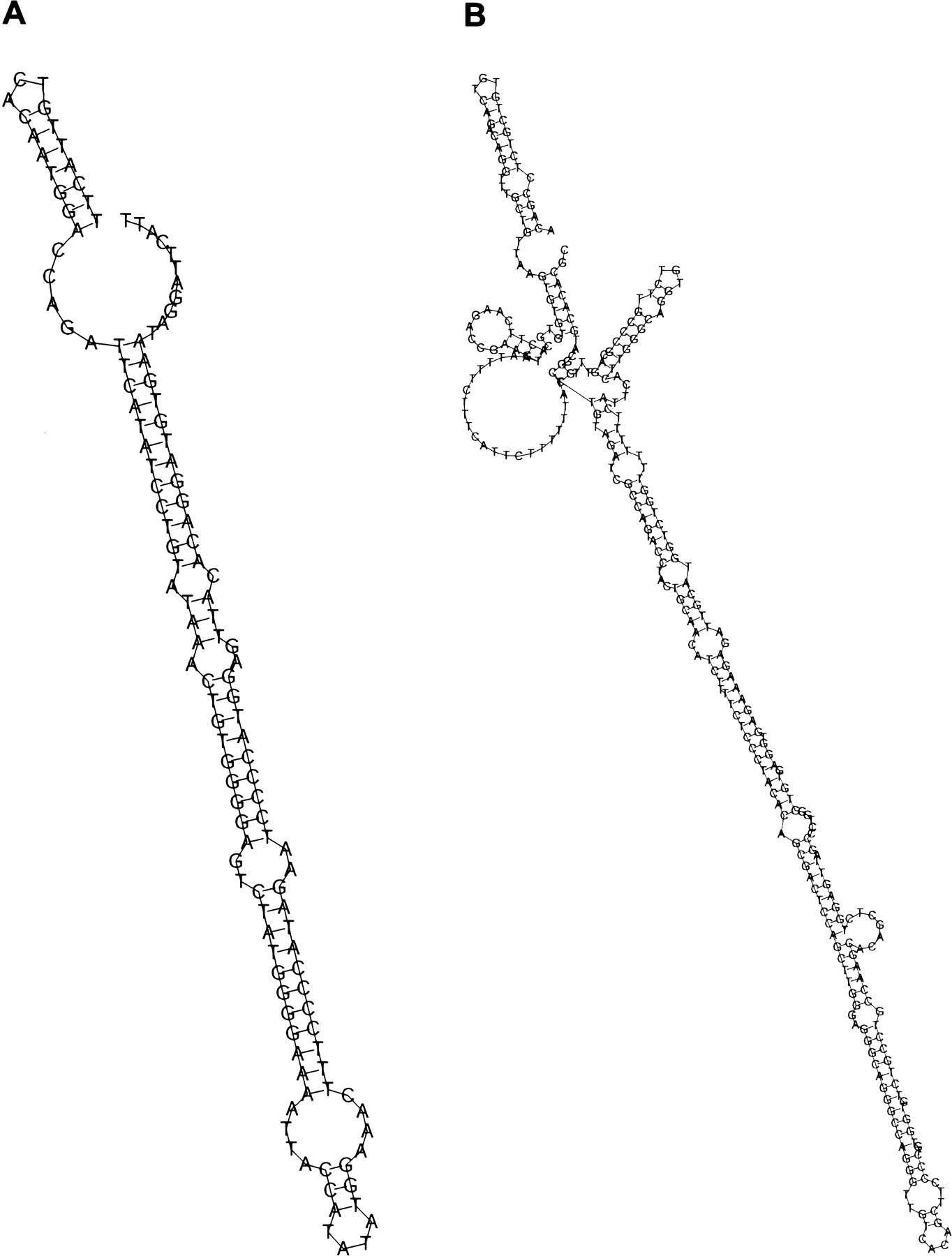

Representative RNA secondary structures predicted for sequences within two MCSs. The minimal free energy structures for the human sequences are depicted, as produced by the Vienna Package (Hofacker et al. 1994). (A) Hairpin structure within an MCS in intron 1 of ST7 (log-odds = 26.3, position of sequence displayed: 855569–855698). (B) Hairpin structure within an MCS in intron 11 of ST7 (log-odds = 46.7, position of sequence displayed: 1019625–1019879).
