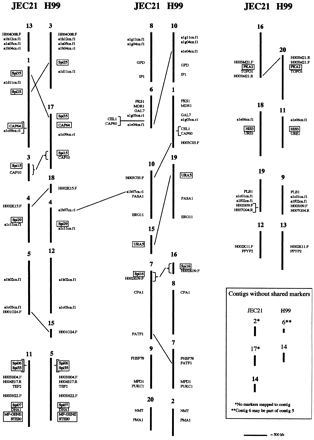

Conservation of synteny between the genomes of JEC21 and H99. The 20 contigs for each map are shown with the markers found on each contig. Note that only markers that mapped to contigs in both strains are shown. Contigs are represented as vertical lines with the contig numbers above. The relative positions of the markers within the contigs are approximated based on hybridization results. Where the relative positions of adjacent markers in a contig could not be reliably interpreted they are grouped by a square bracket. Corresponding contigs from JEC21 and H99, based on marker content and order, are placed adjacent to each other for comparison. Differences in marker locations between the two strains are also indicated. No markers were found for the JEC21 contigs 2 and 17; these contigs, along with contig 14 and the H99 contigs 6 and 14, did not have shared markers between the genomes. The boxed and shaded markers also were used to relate the contigs to electrophoretically separated chromosomes (Fig. 2).
