Active Alu Element “A-Tails”: Size Does Matter

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

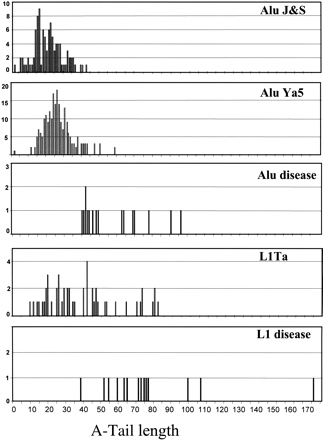

Figure 2.
Figure 2.

Histogram of the distribution of the length of A-tail in different subgroups of Alu and L1 elements. Distribution of the A-tail length of Alu elements belonging to old subfamilies (Alu J and S), the young subfamily Alu Ya5, and those reported to cause disease (see text for definition), plus the L1 elements from the young Ta (Ta0 and Ta1) and those linked to disease. Note: The scale for the Y-axis (number of elements) is different for each group.

This Article

  1. Published in Advance August 21, 2002, doi: 10.1101/gr.384802 Genome Res. 12: 1333-1344
