Figure 5.

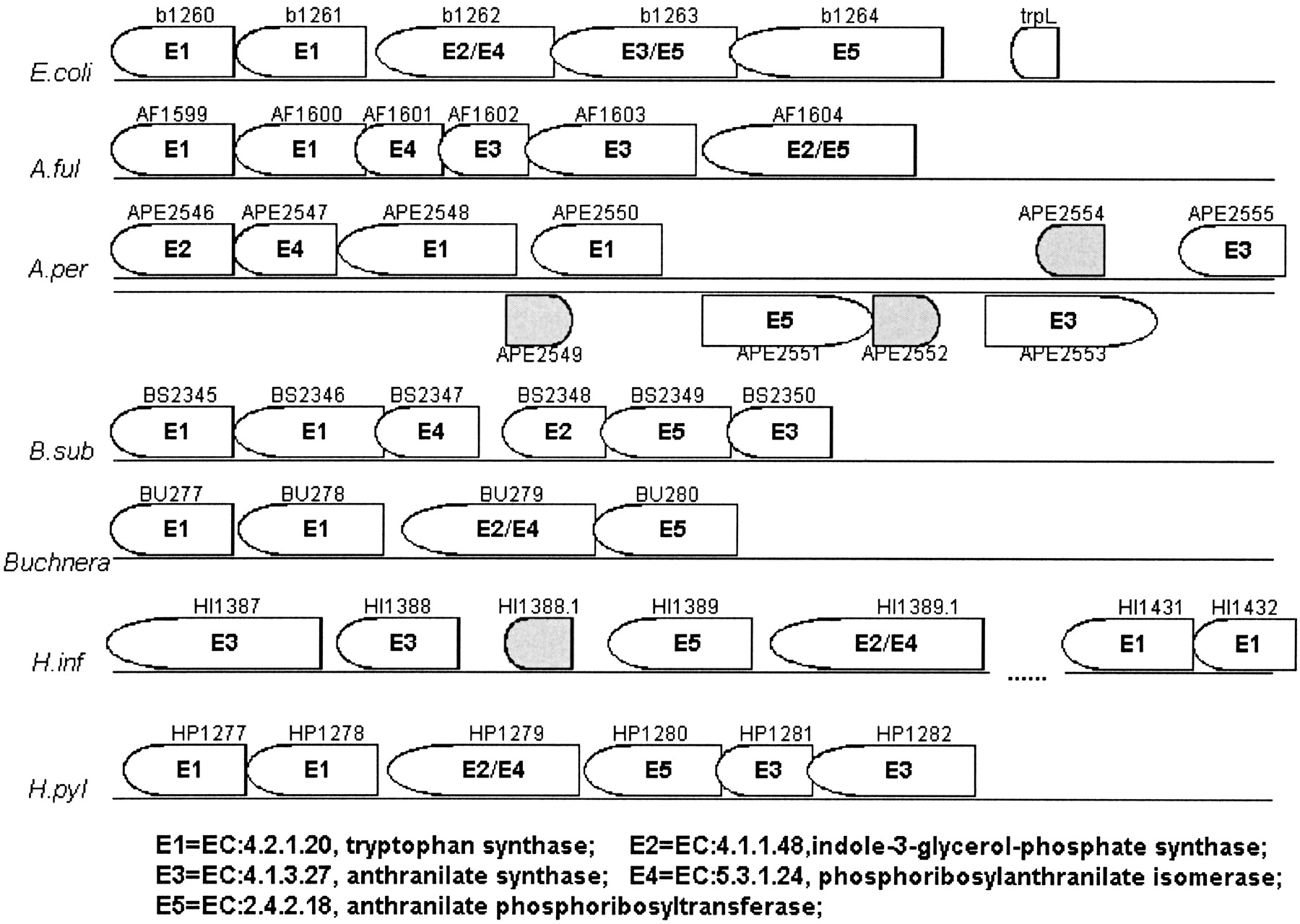

trp operon alignment. Genes are drawn with directions (sharp end is a transcription stop) and are labeled with all the enzymatic activities they have. Genes colored gray are nonenzymes and are not inside the operon. The single line represents a DNA strand (5′ to 3′). Double lines represent both strands.
