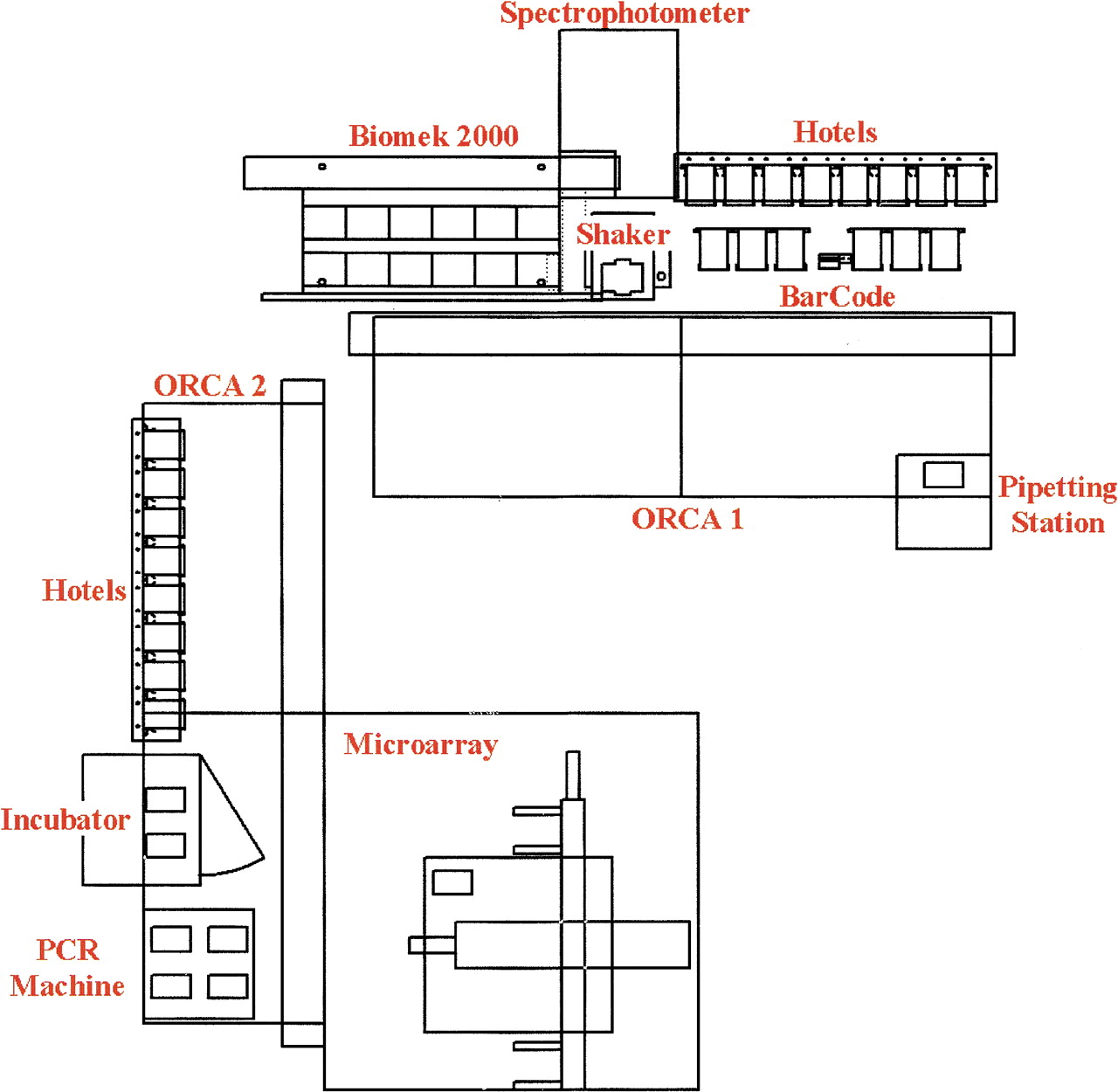

Figure 1.
Schematic of work station located in the Eccles Institute of Human Genetics. It occupies approximately one-half of a 600 sq. ft. laboratory bay. Two ORCA robotic arms address a work area of ∼50 sq. ft. Key pieces of equipment are shown in red. (Fig. taken with permission from http://metherall.genetics.utah.edu/HTR.html. A layout video is also available at this web site).
