Protein Coding Palindromes Are a Unique but Recurrent Feature in Rickettsia

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

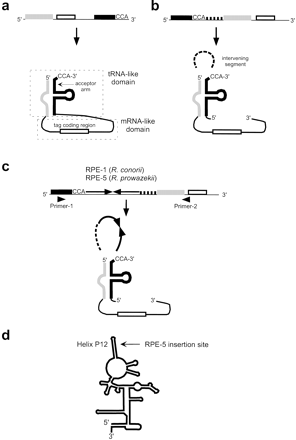

Figure 4.
Figure 4.

RPEs found within the RNA genes. (a) The standard form of the tmRNA genes observed in most bacterial species. (b) The permutated form of the tmRNA gene observed in α-proteobacteria (Keiler et al. 2000). (c) Locations of the RPE-1 and RPE-5 inserted in the tmRNA genes of Rickettsia. Approximate locations of the primers are indicated by triangles. (d) The secondary structure model of the M1 RNA and the insertion site of the RPE-5 in R. conorii.

This Article

  1. Published in Advance April 12, 2002, doi: 10.1101/gr.227602 Genome Res. 12: 808-816
