Functional Genomics on Potato Virus A: Virus Genome-Wide Map of Sites Essential for Virus Propagation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 4.
Figure 4.

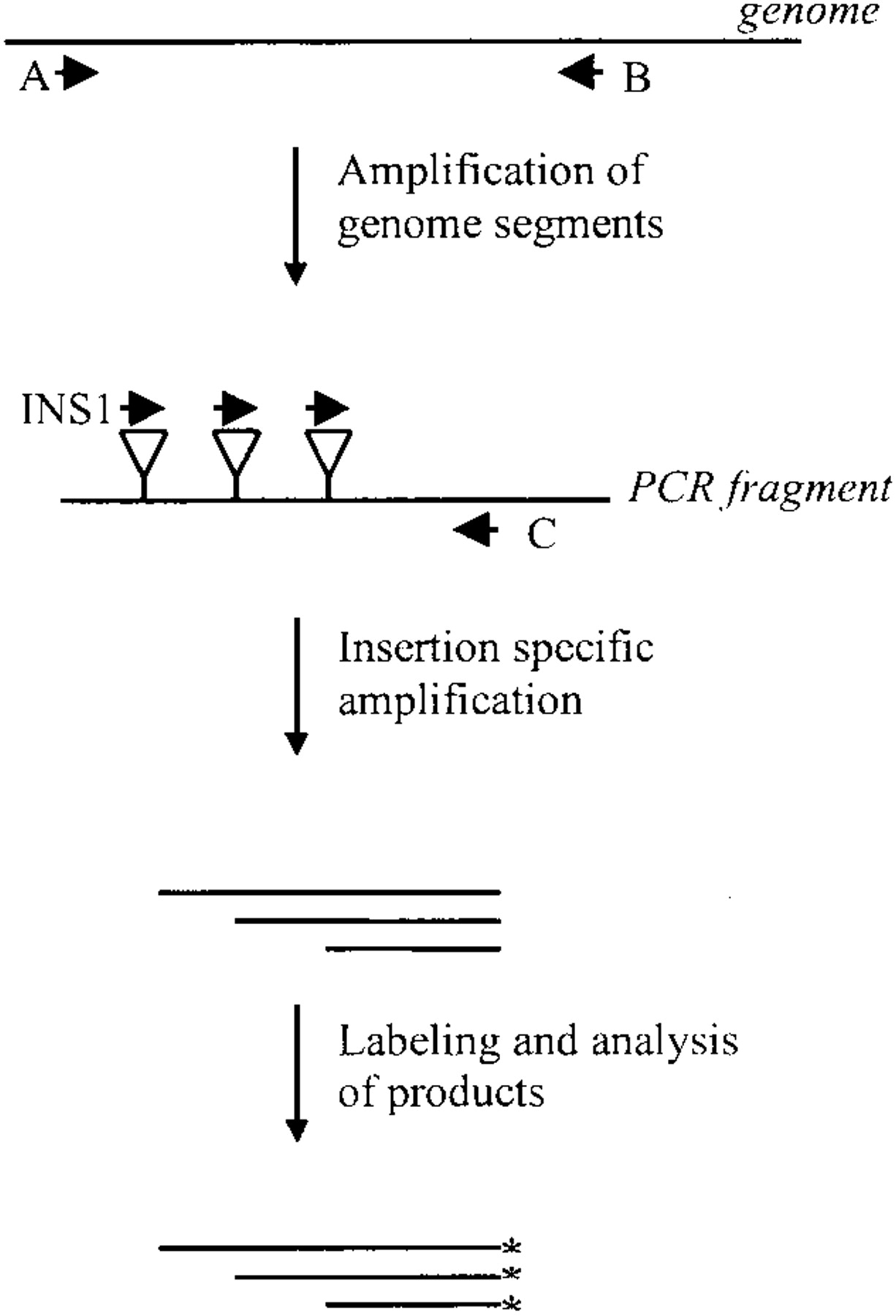

 PCR-based footprinting strategy used in fine mapping of insertion sites. Primers are indicated by arrows, insertion sites by triangles, and labeled products by asterisks. Primer INS1: 5′-TATACTCTTCAGATGCGGCCG, with insertion-specific nucleotides underlined. A, B, and C are PVA-specific primers.

This Article

  1. Published in Advance March 20, 2002, doi: 10.1101/gr.220702 Genome Res. 12: 584-594
