Genomic Analysis of the Olfactory Receptor Region of the Mouse and Human T-Cell Receptor α/δ Loci

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

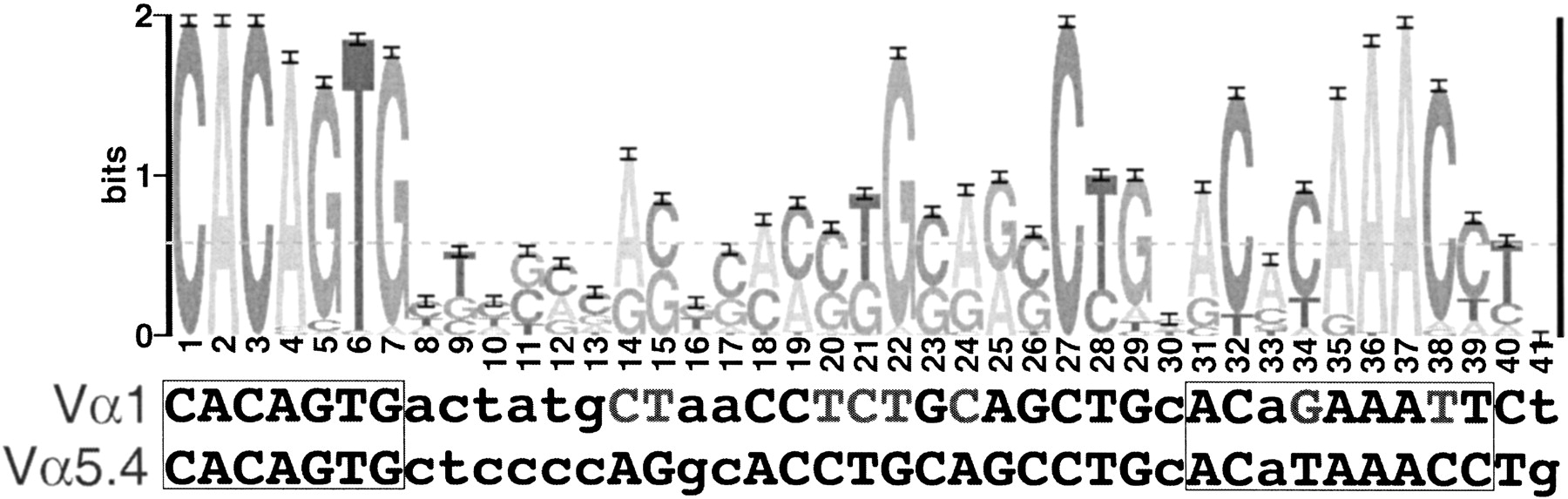

Figure 5.
Figure 5.

Sequence LOGO of RSS based on a profile of V-gene segments in the TCR-α/δ loci. The divergent RSS for the mouse Vα1 segment is compared to V-gene consensus RSS motifs. Within the Vα1 RSS motif, capital letters indicate residues in which there is strong consensus, and gray letters indicate residues that deviate from consensus.
