Athila4 of Arabidopsis and Calypso of Soybean Define a Lineage of Endogenous Plant Retroviruses

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 3.
Figure 3.

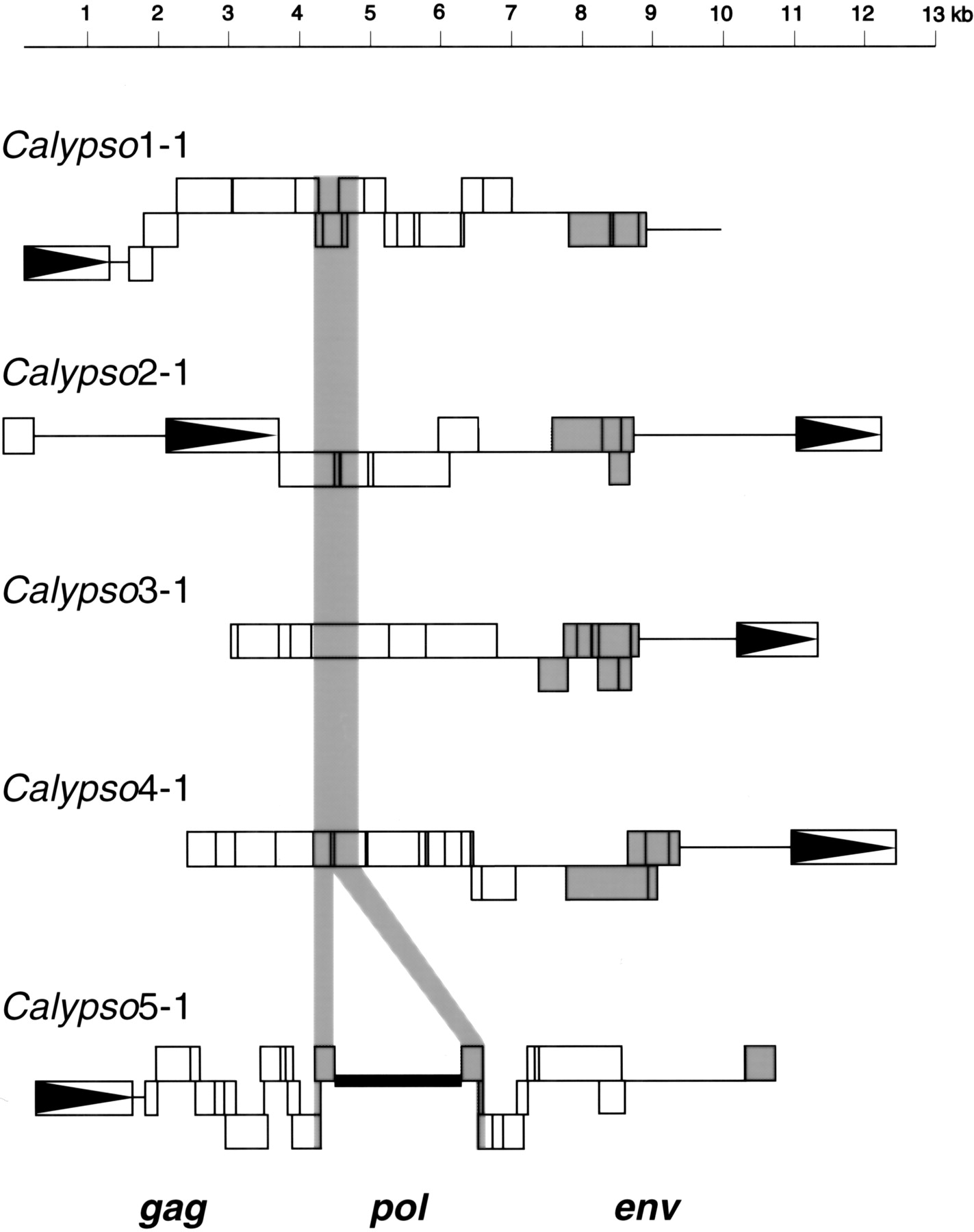

Structural organization of the Calypso elements. Elements are depicted as described in the Fig. 2 legend. A Calypso element has inserted into Calypso2-1. The left-most LTR depicted belongs to this element; whereas, the right LTR belongs toCalypso2-1. Calypso5-1 has what appears to be a soloCalypso LTR within reverse transcriptase, which is indicated by the thick horizontal line.

This Article

  1. Published in Advance December 14, 2001, doi: 10.1101/gr.196001 Genome Res. 12: 122-131
